RF Connector

Offers a full range of RF connectors including Cable connectors, PCB mount connectors and Board-to-Board connectors designed for various use in RF markets. Other features include Low PIMD and IP 67 rated sealing.

Total 20, Page 1

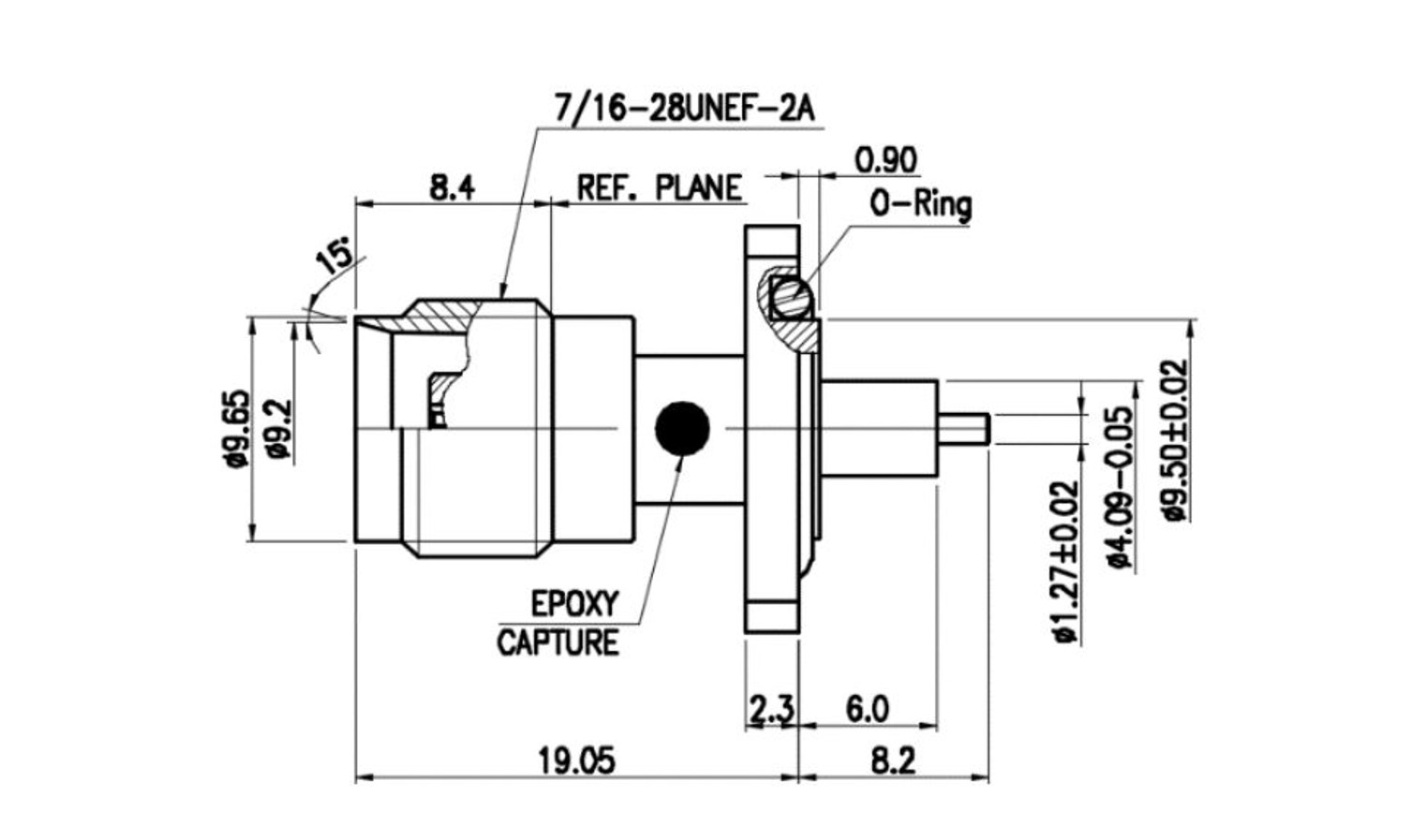

  • T4026-510
    • P/N : T4026-510
    • Frequency range : DC ~ 18GHz
    • VSWR : -
    • Gender : Female
    • Patterns : Straight
    • Shape : Panel mount
    • Length : 19.05mm
    Download Specifications

  • QA510-310
    • P/N : QA510-310
    • Frequency range : DC ~ 18GHz
    • VSWR : -
    • Gender : Female
    • Patterns : Straight
    • Shape : Panel mount
    • Length : 21.0mm
    Download Specifications

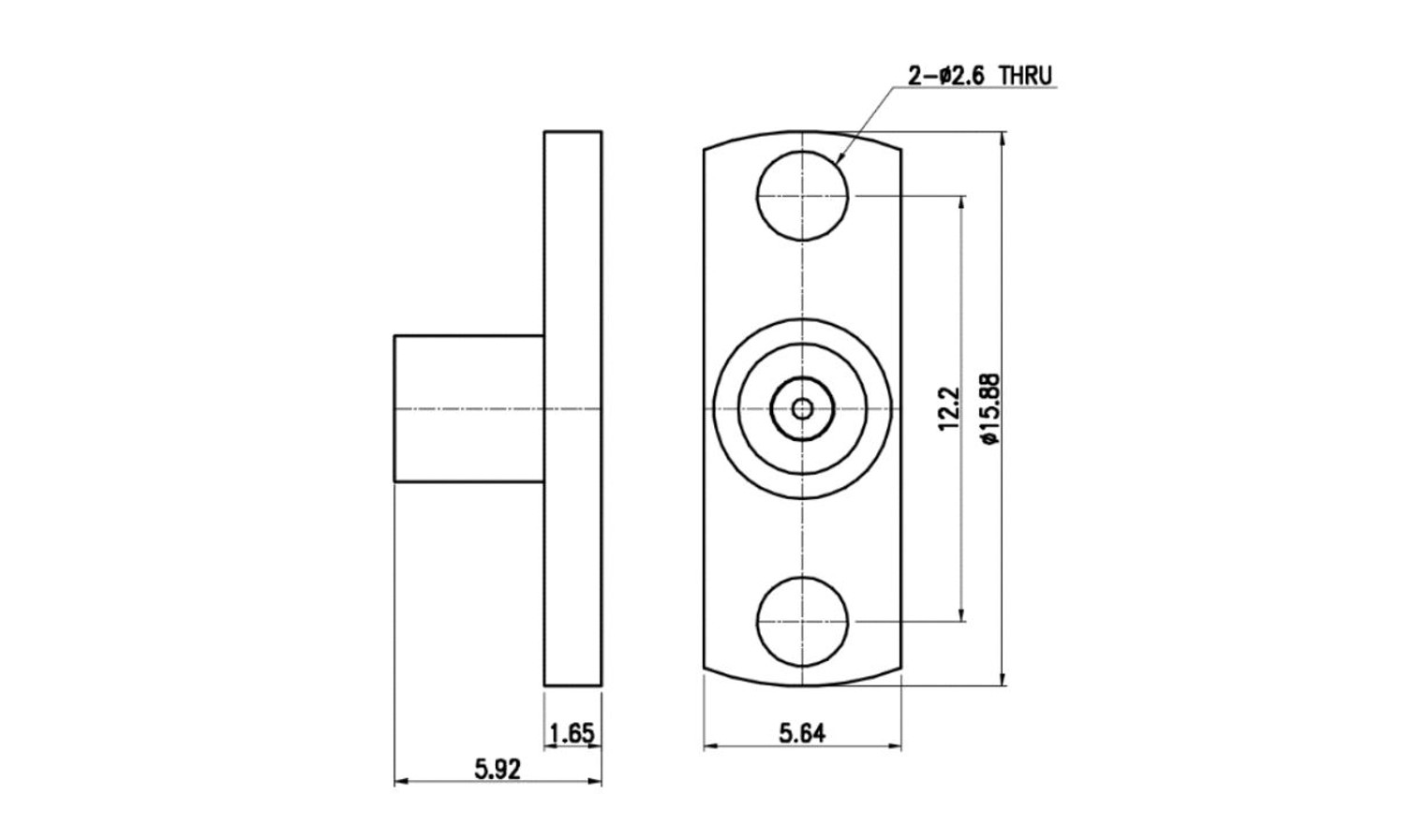

  • Q9915-510
    • P/N : Q9915-510
    • Frequency range : DC ~ 18GHz
    • VSWR : -
    • Gender : Male
    • Patterns : Straight
    • Shape : Panel mount
    • Length : 5.92mm
    Download Specifications

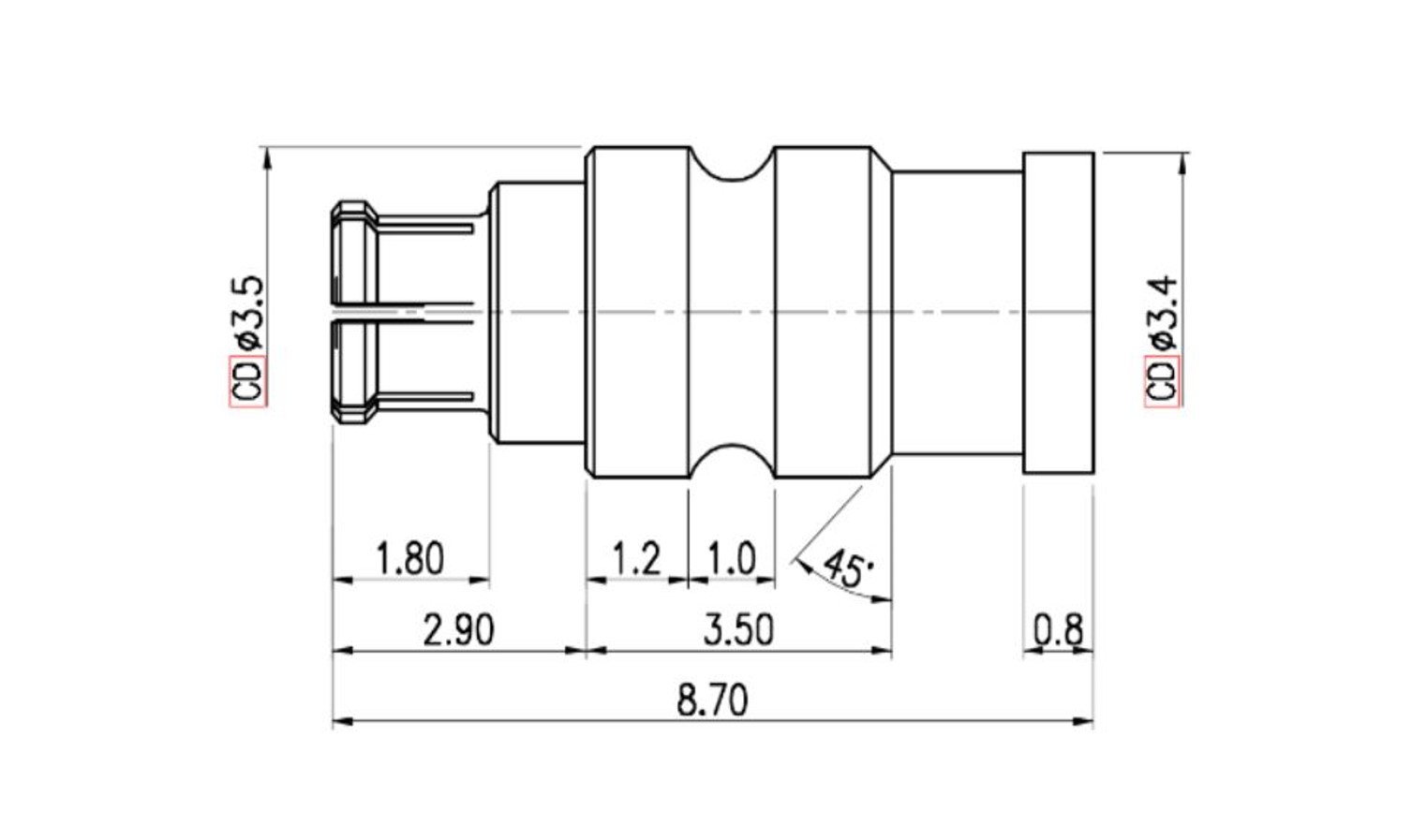

  • Q9912-110
    • P/N : Q9912-110
    • Frequency range : DC ~ 18GHz
    • VSWR : -
    • Gender : Female
    • Patterns : Straight
    • Shape : 085 Cable
    • Length : 8.7mm
    Download Specifications

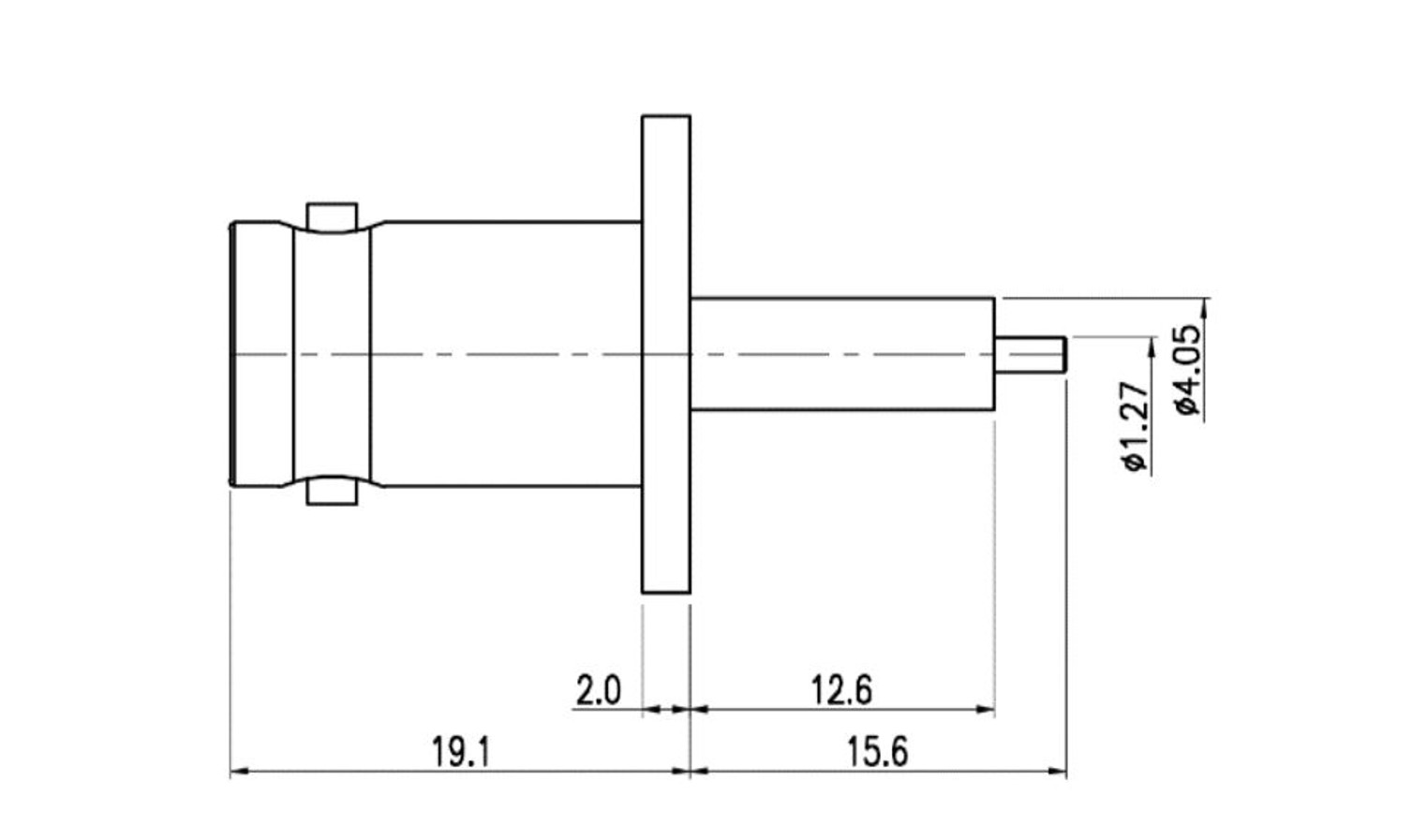

  • Q4006-410
    • P/N : Q4006-410
    • Frequency range : DC ~ 4GHz
    • VSWR : -
    • Gender : Female
    • Patterns : Straight
    • Shape : Panel mount
    • Length : 19.1mm
    Download Specifications

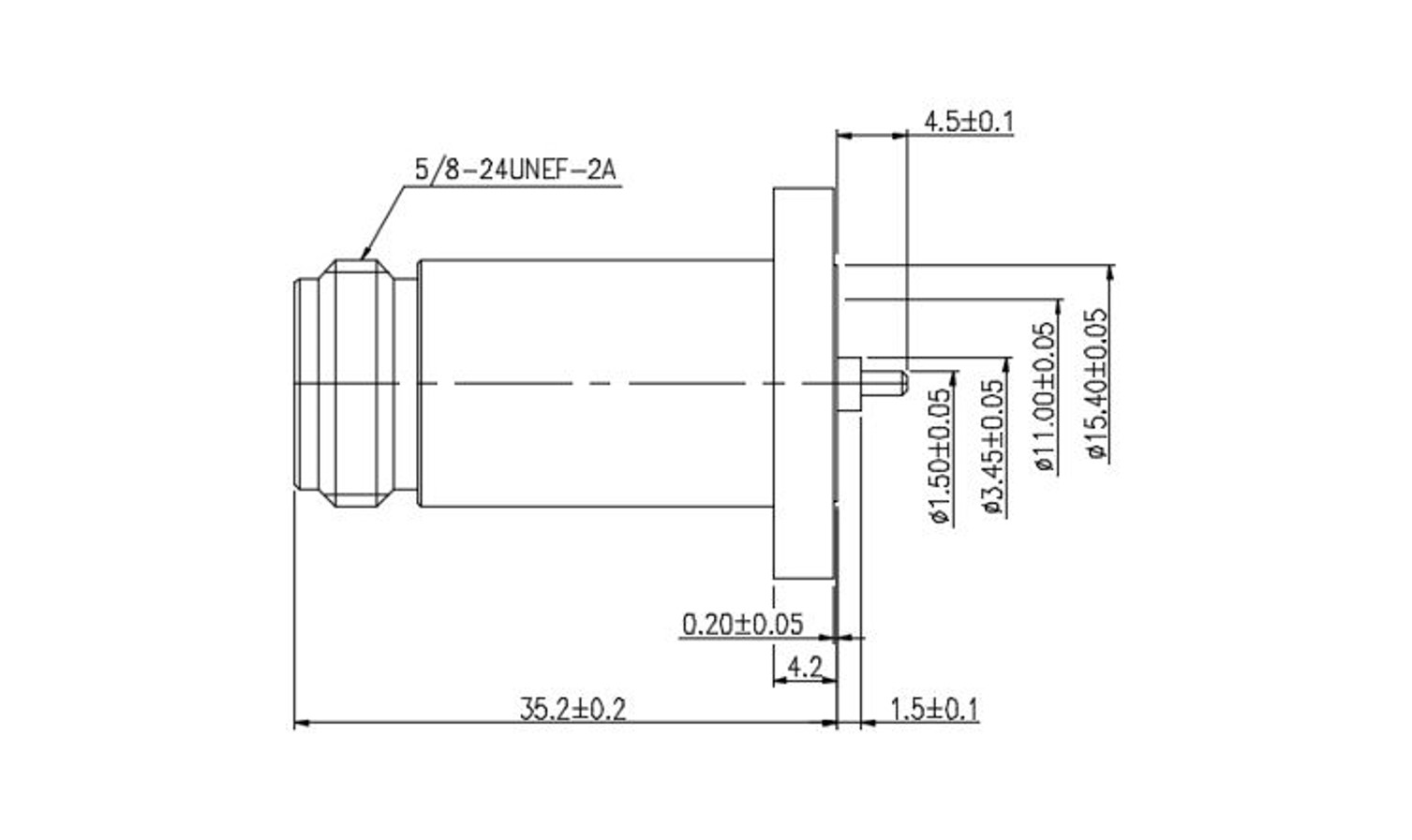

  • N4375-720
    • P/N : N4375-720
    • Frequency range : DC ~ 3GHz
    • VSWR : 1.10
    • Gender : Female
    • Patterns : Straight
    • Shape : Panel mount
    • Length : 35.2mm
    Download Specifications

  • M4008-410
    • P/N : M4008-410
    • Frequency range : DC ~ 6GHz
    • VSWR : -
    • Gender : Female
    • Patterns : Straight
    • Shape : Panel mount
    • Length : 10.5mm
    Download Specifications

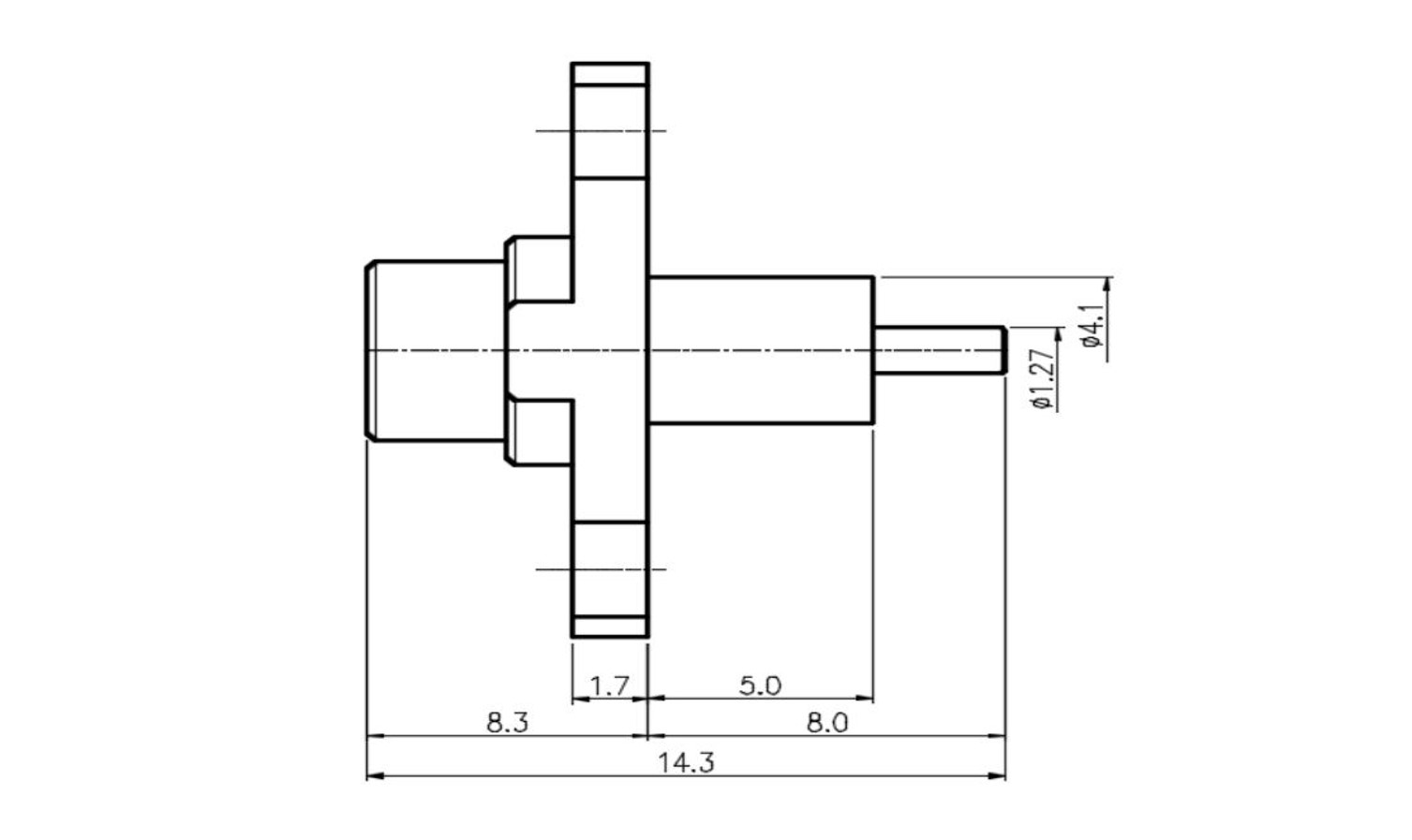

  • M4005-310
    • P/N : M4005-310
    • Frequency range : DC ~ 6GHz
    • VSWR : -
    • Gender : Female
    • Patterns : Straight
    • Shape : Panel mount
    • Length : 8.3mm
    Download Specifications

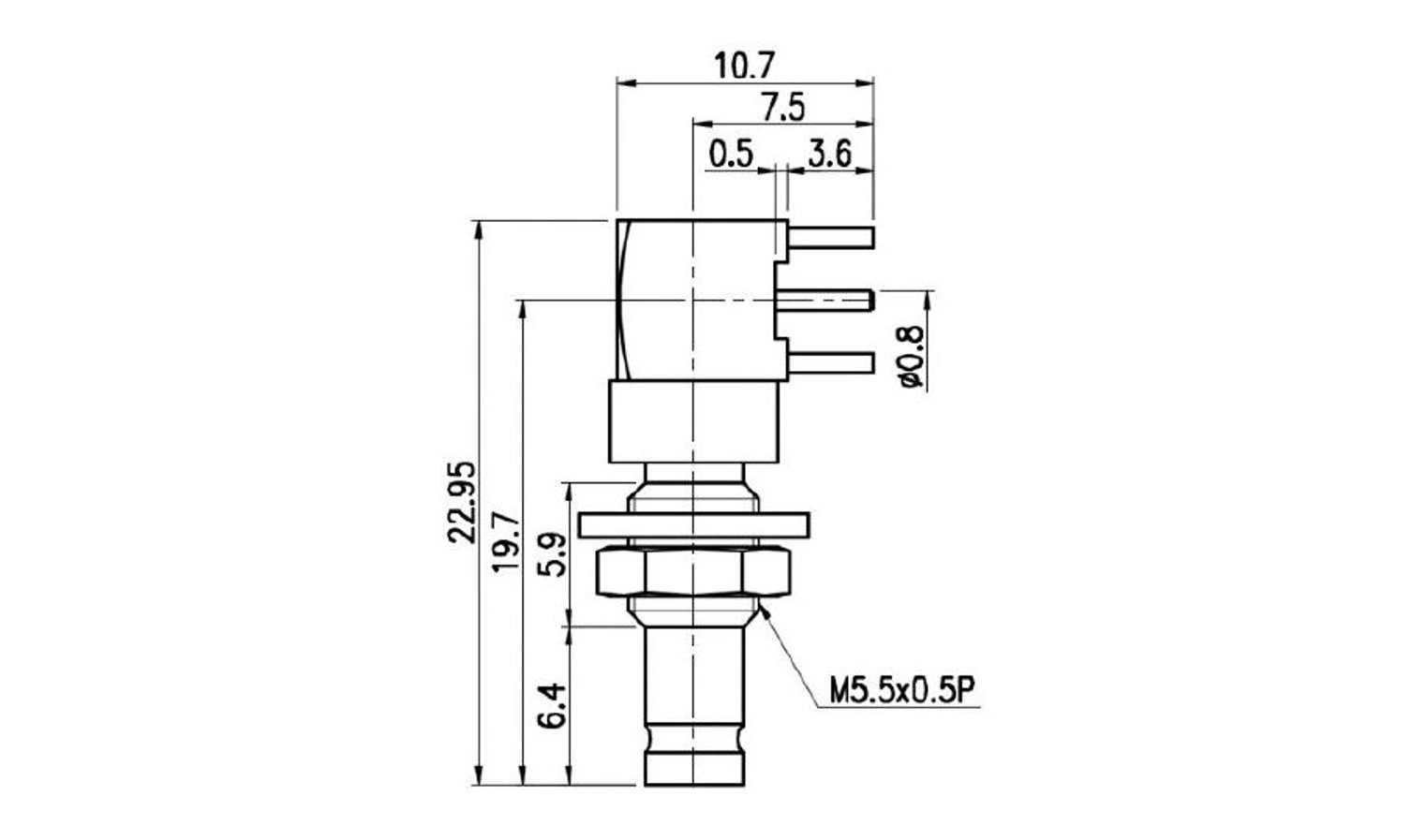

  • H7001-410
    • P/N : H7001-410
    • Frequency range : DC ~ 10GHz
    • VSWR : -
    • Gender : Female
    • Patterns : Straight
    • Shape : PCB Mount
    • Length : 22.95mm
    Download Specifications

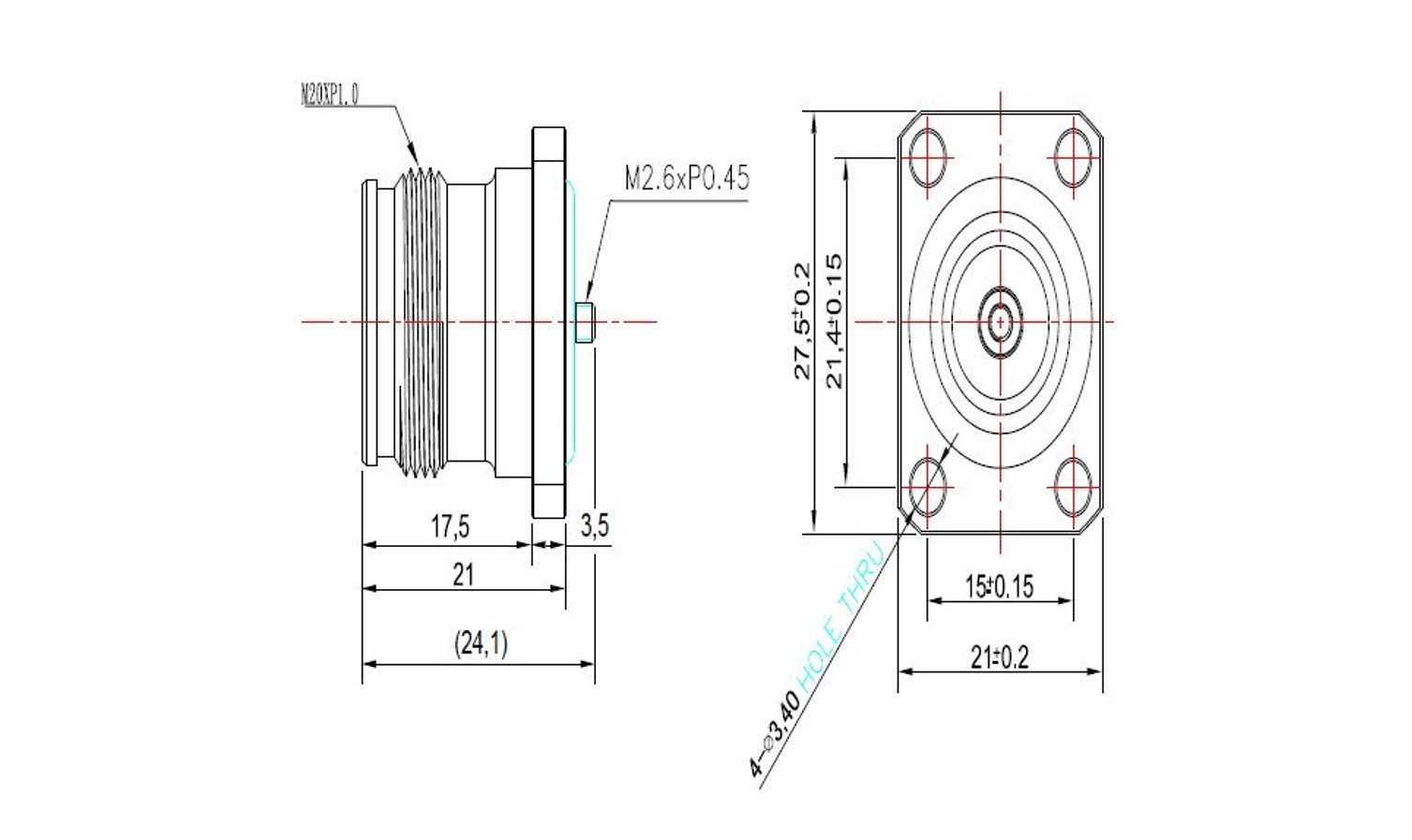

  • E4046-720
    • P/N : E4046-720
    • Frequency range : DC ~ 6GHz
    • VSWR : 1.05
    • Gender : Female
    • Patterns : Straight
    • Shape : Panel mount
    • Length : 21.0mm
    Download Specifications

  • E4039-720
    • P/N : E4039-720
    • Frequency range : DC ~ 6GHz
    • VSWR : 1.05
    • Gender : Female
    • Patterns : Straight
    • Shape : Panel mount
    • Length : 29.1mm
    Download Specifications

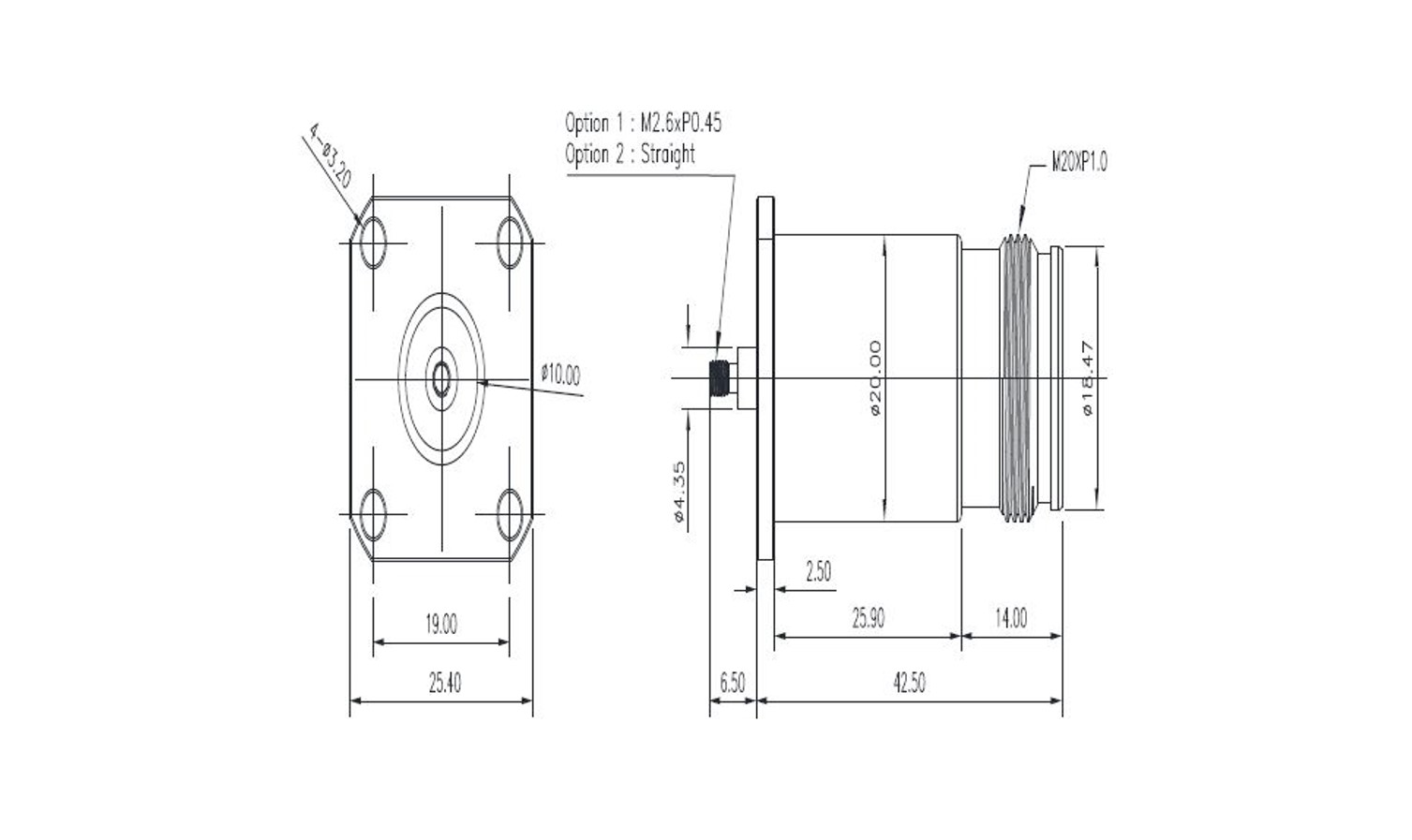

  • E4028-720
    • P/N : E4028-720
    • Frequency range : DC ~ 6GHz
    • VSWR : 1.05
    • Gender : Female
    • Patterns : Straight
    • Shape : Panel mount
    • Length : 42.5mm
    Download Specifications

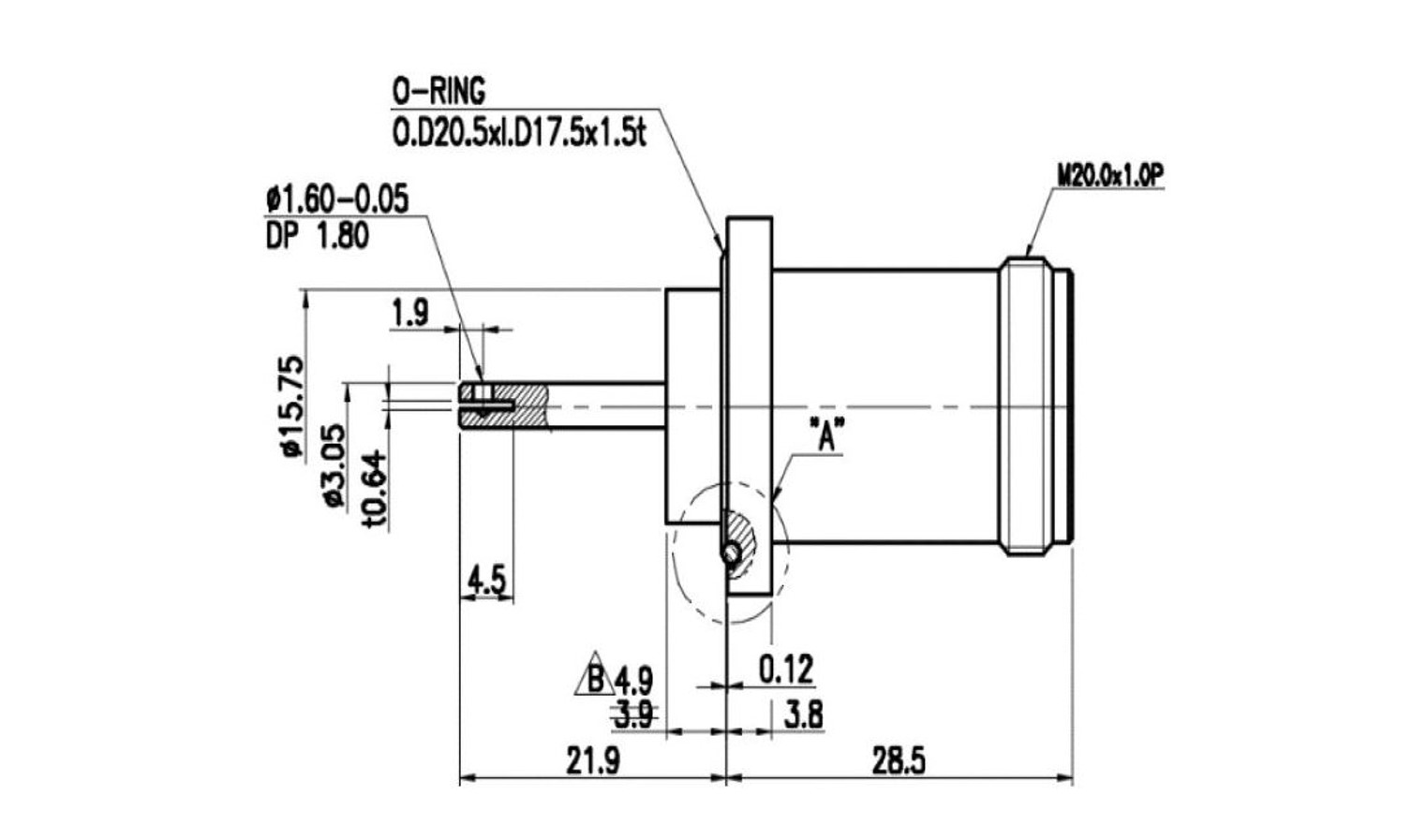

  • D9024-320
    • P/N : D9024-320
    • Frequency range : DC ~ 6GHz
    • VSWR : 1.20
    • Gender : Female
    • Patterns : Straight
    • Shape : Panel mount
    • Length : 28.5mm
    Download Specifications

  • D4331-720
    • P/N : D4331-720
    • Frequency range : DC ~ 6GHz
    • VSWR : 1.10
    • Gender : Female
    • Patterns : Straight
    • Shape : Panel mount
    • Length : 28.4mm
    Download Specifications

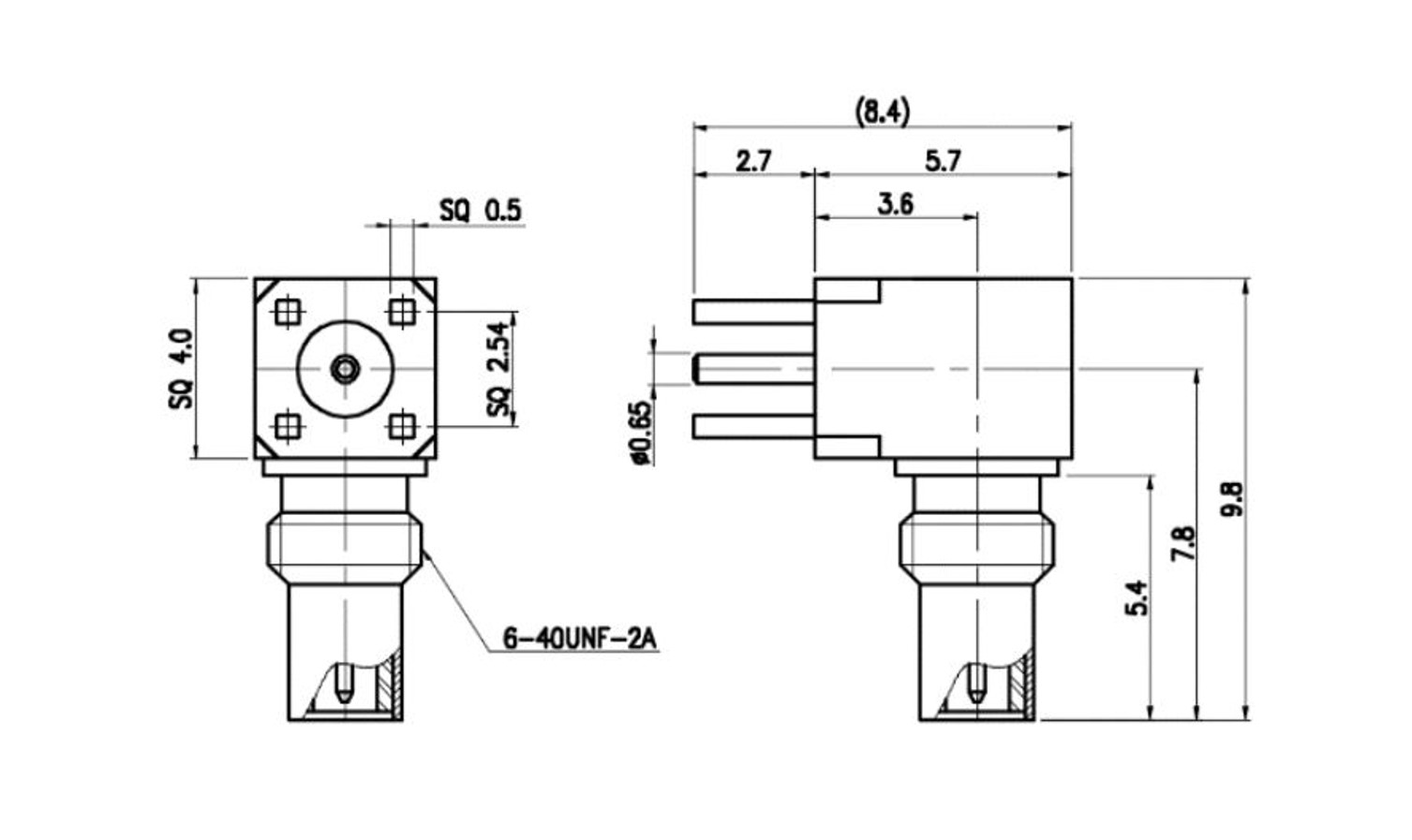

  • CC701-110
    • P/N : CC701-110
    • Frequency range : DC ~ 12GHz
    • VSWR : -
    • Gender : Female
    • Patterns : Right angle
    • Shape : PCB Mount
    • Length : 9.8mm
    Download Specifications
