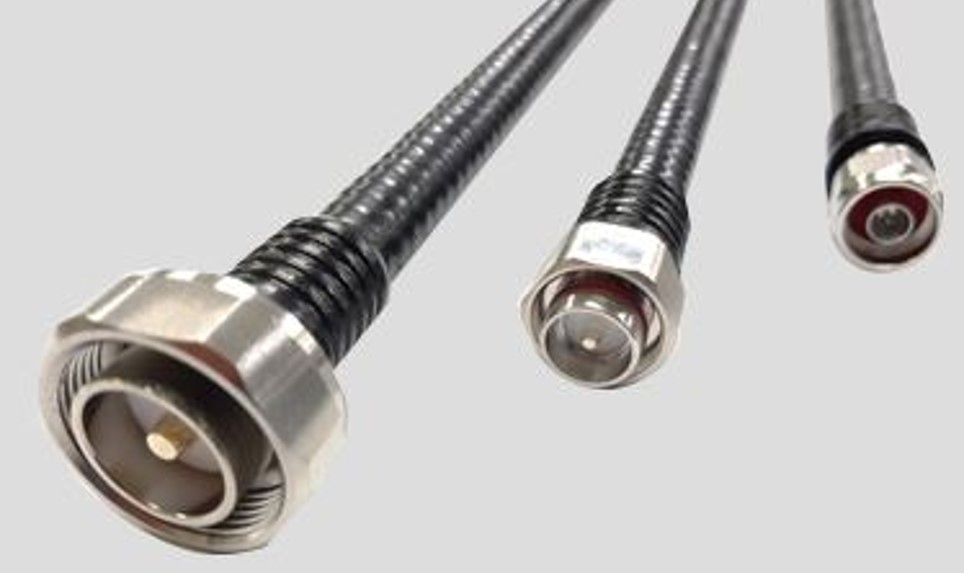

RF Cable Assemblies

Offers a full range of Coaxial Adaptors including in-series, between series, Bulk head type and Panel mount type adapters. Other features include Low PIMD and IP 67 rated sealing. Customized products can also be developed.

Total 10, Page 1

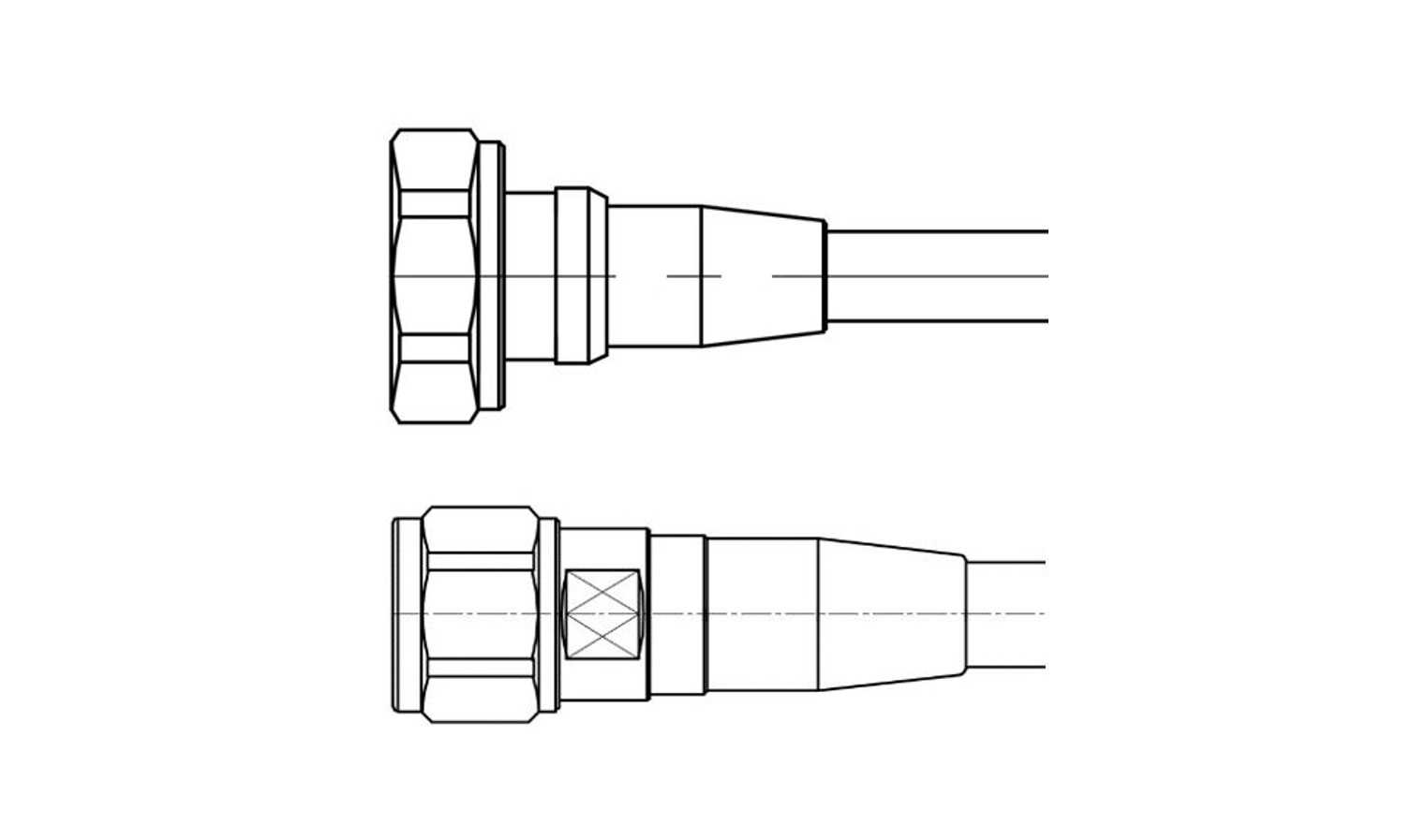

  • XSF38DMNM01.0M
    • P/N : XSF38DMNM01.0M
    • Frequency range : DC ~ 3GHz
    • VSWR : 1.25
    • Gender : 7-16 DIN Male to N Male
    • Patterns : Straight
    • Cable : 3/8inch Super Flexible
    Download Specifications

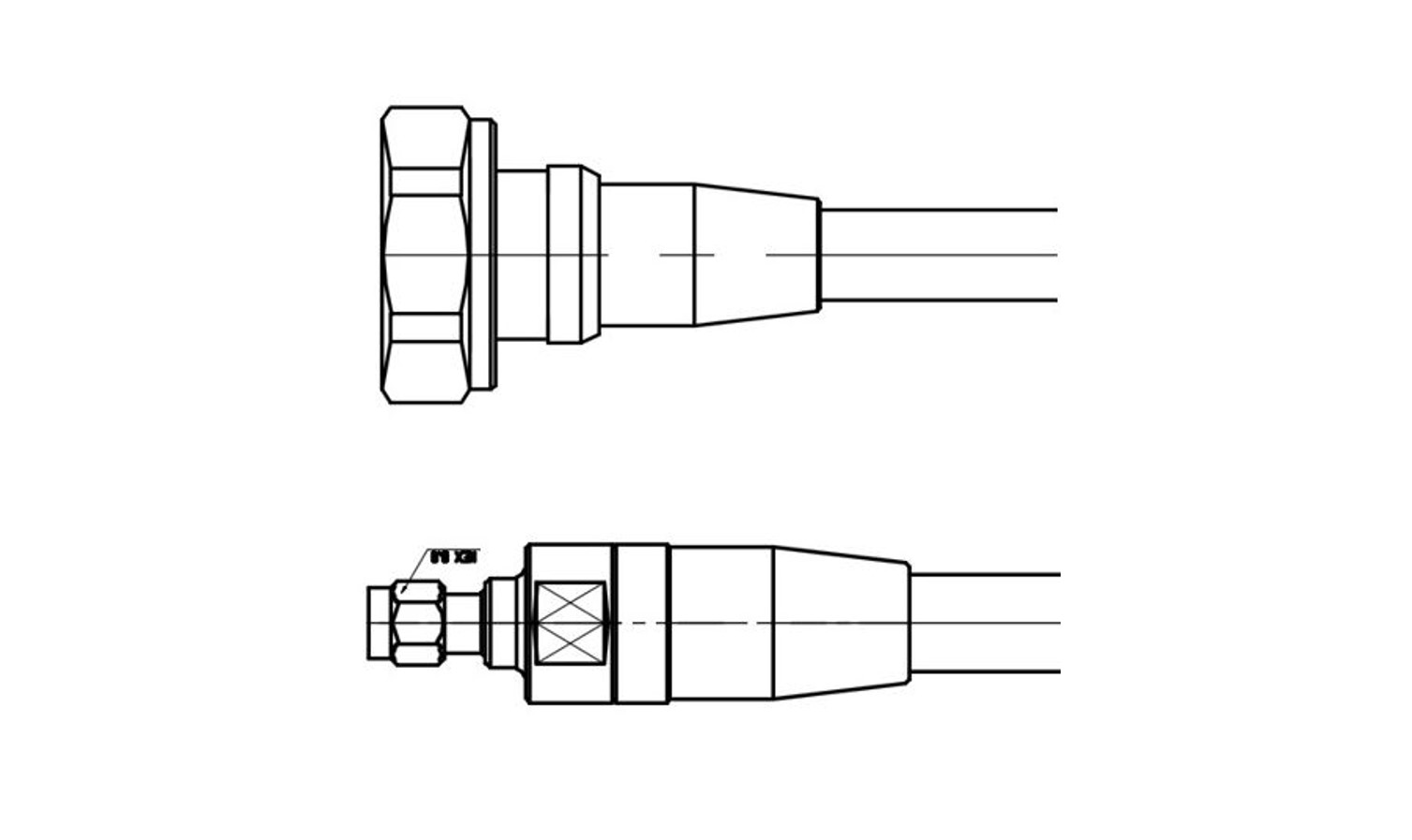

  • XSF38DMAM01.0M
    • P/N : XSF38DMAM01.0M
    • Frequency range : DC ~ 3GHz
    • VSWR : 1.25
    • Gender : 7-16 DIN Male to SMA Male
    • Patterns : Straight
    • Cable : 3/8inch Super Flexible
    Download Specifications

  • XSF38-DMDM01.0M
    • P/N : XSF38-DMDM01.0M
    • Frequency range : DC ~ 3GHz
    • VSWR : 1.25
    • Gender : 7-16 DIN Male
    • Patterns : Straight
    • Cable : 3/8inch Super Flexible
    Download Specifications

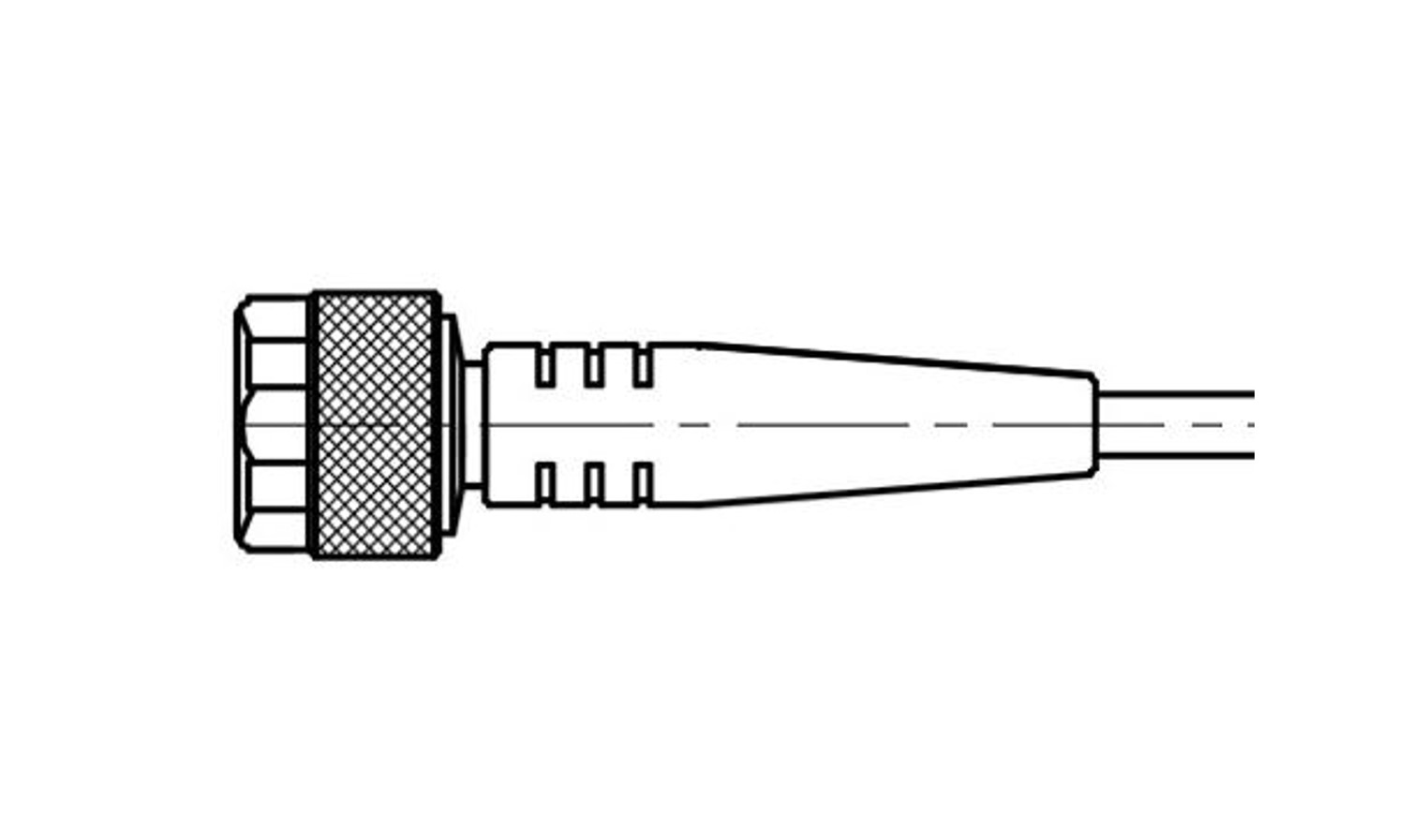

  • XAPLUS-NMNM-XX.XXM
    • P/N : XAPLUS-NMNM-XX.XXM
    • Frequency range : DC ~ 6GHz
    • VSWR : 1.20
    • Gender : N Male
    • Patterns : Straight
    • Cable : SF141
    Download Specifications

  • N1129-323
    • P/N : N1129-323
    • Frequency range : DC ~ 4GHz
    • VSWR : 1.20
    • Gender : N Male
    • Patterns : Straight
    • Cable : 1/2inch Flexible
    Download Specifications

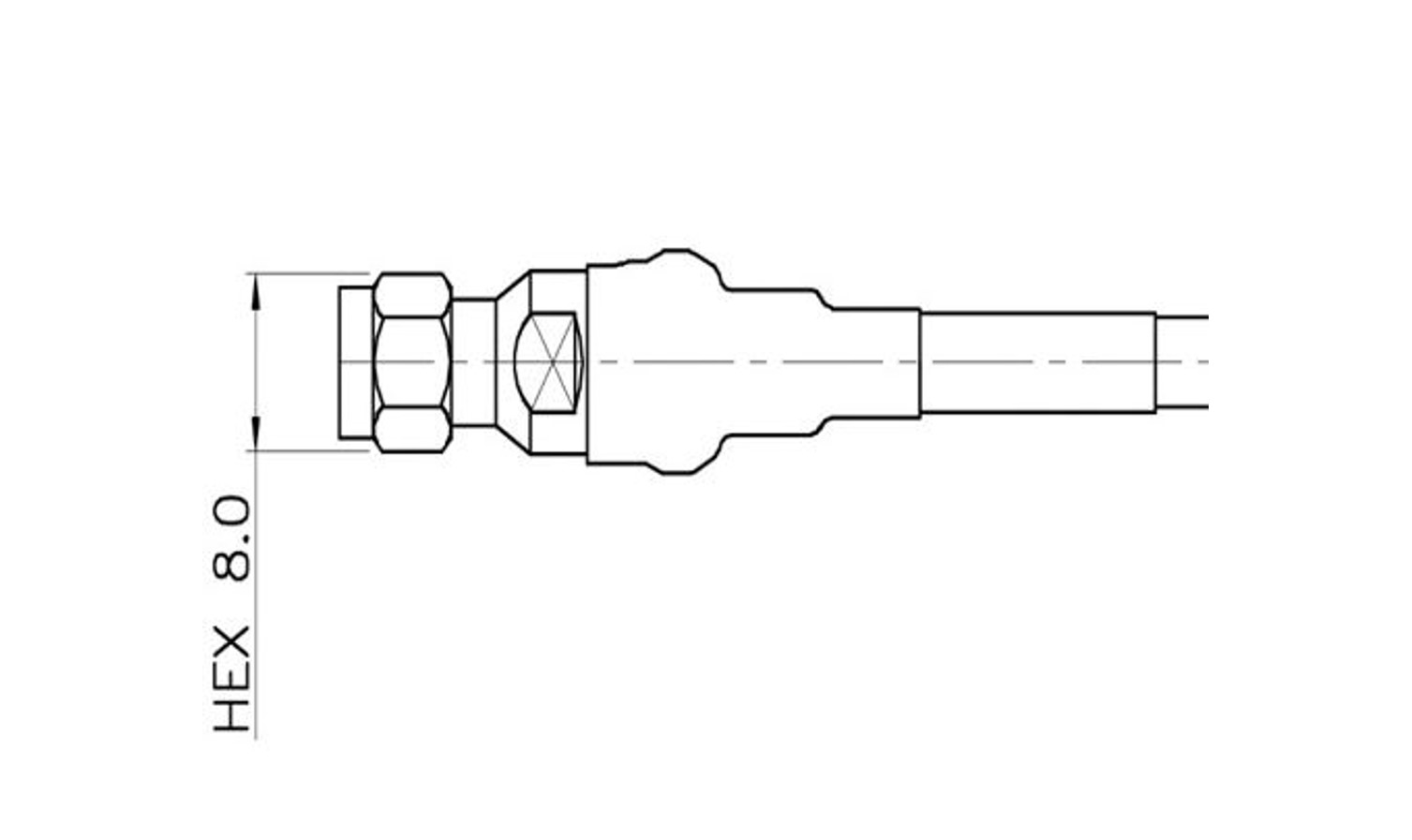

  • ME18-AMAM-XX.XM
    • P/N : ME18-AMAM-XX.XM
    • Frequency range : DC ~ 18GHz
    • VSWR : 1.30
    • Gender : SMA Male
    • Patterns : Straight
    • Cable : RG402
    Download Specifications

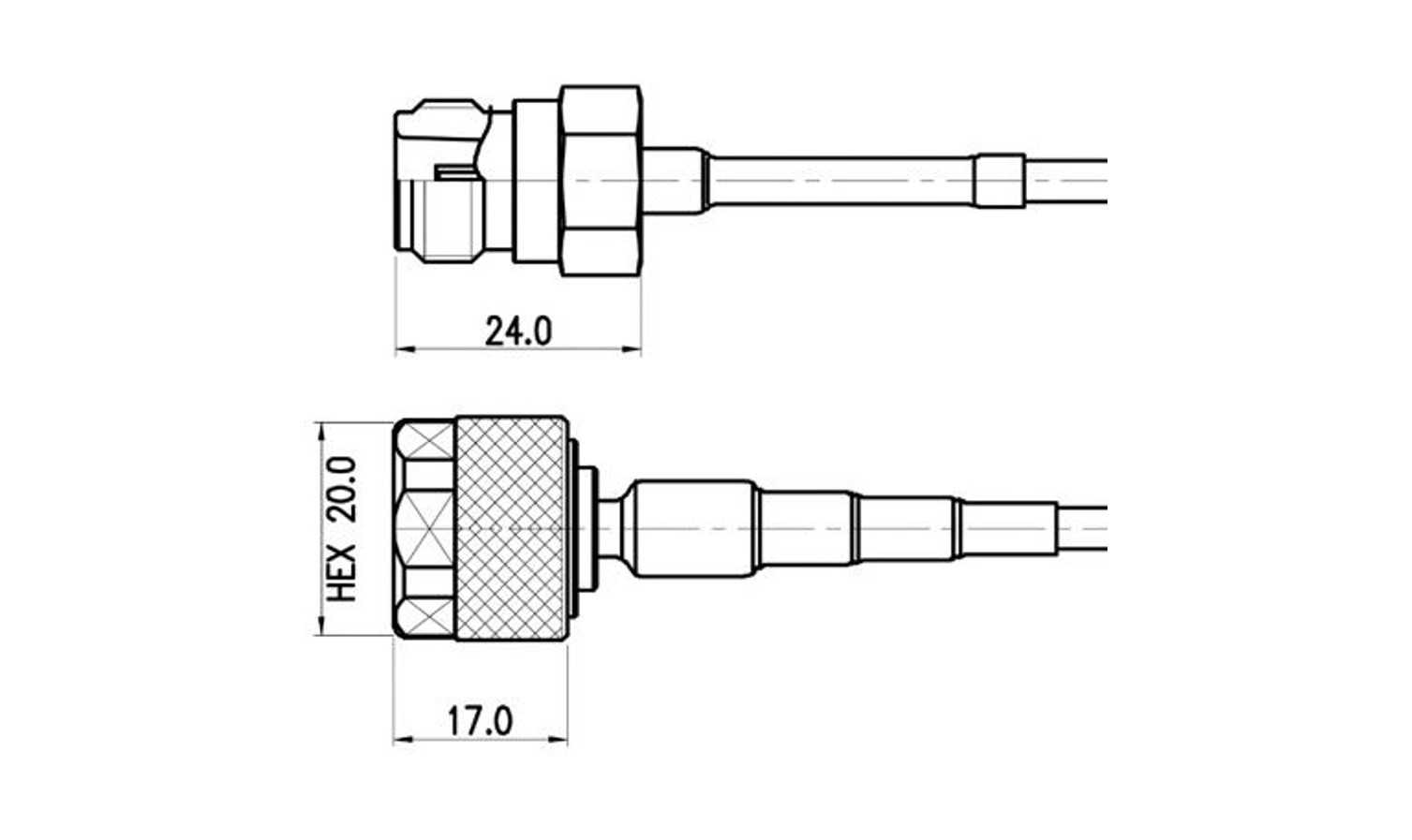

  • ME12-NFNM-01.5M
    • P/N : ME12-NFNM-01.5M
    • Frequency range : DC ~ 6GHz
    • VSWR : 1.20
    • Gender : N Male to N Female
    • Patterns : Straight
    • Cable : RG141
    Download Specifications

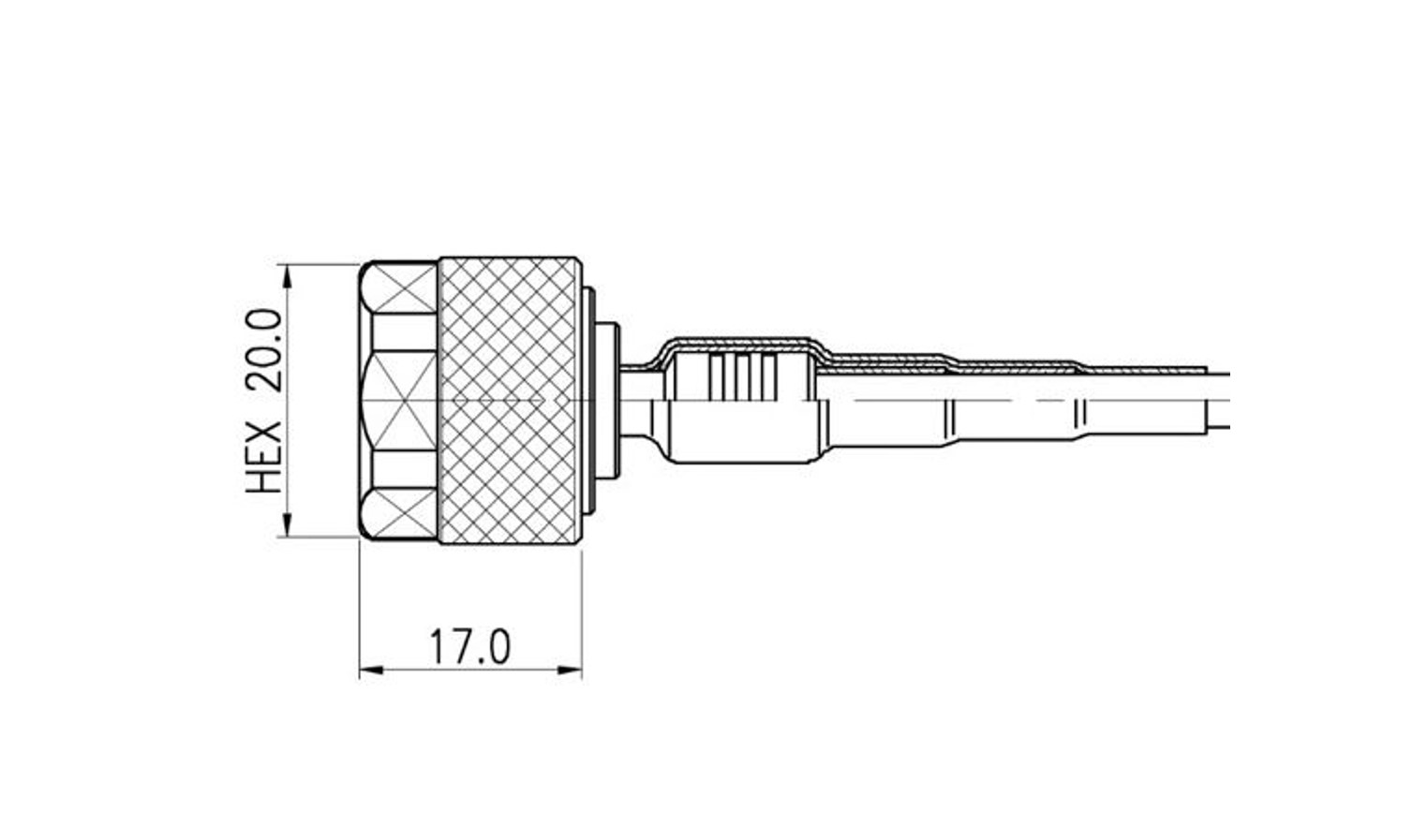

  • ME06-NMNM-XX.XM
    • P/N : ME06-NMNM-XX.XM
    • Frequency range : DC ~ 6GHz
    • VSWR : 1.20
    • Gender : N Male
    • Patterns : Straight
    • Cable : RG141
    Download Specifications

  • E1010-323
    • P/N : E1010-323
    • Frequency range : DC ~ 4GHz
    • VSWR : 1.20
    • Gender : 4.3-10 Male
    • Patterns : Straight
    • Cable : 1/2inch Flexible
    Download Specifications

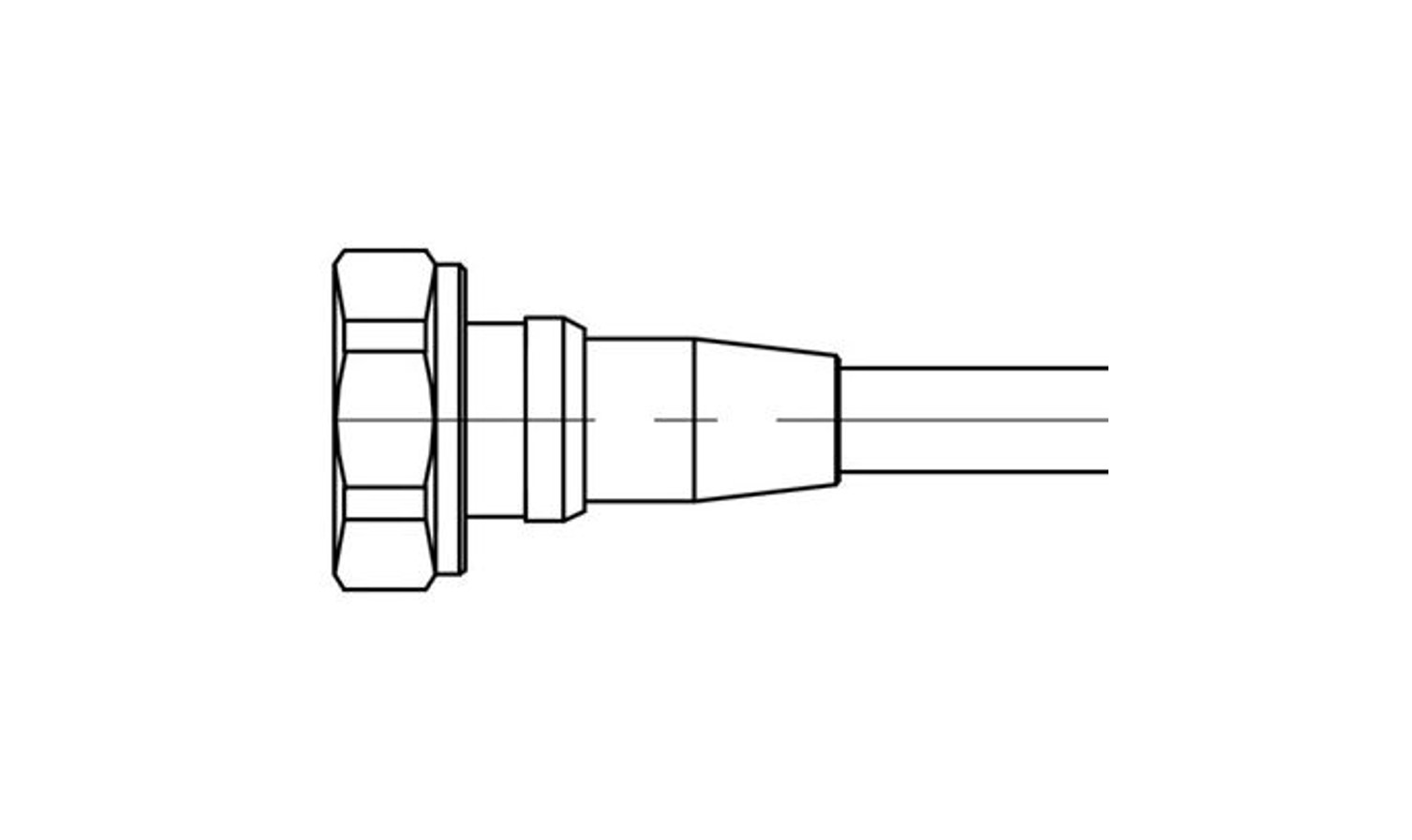

  • D1080-323
    • P/N : D1080-323
    • Frequency range : DC ~ 4GHz
    • VSWR : 1.20
    • Gender : 7-16 DIN Male
    • Patterns : Straight
    • Cable : 1/2inch Flexible
    Download Specifications
