RF Cable Assemblies

표준 Cable assembly 모든 제품을 제공하며 다양한 산업 분야에서 사용됩니다. Cable은 일반적인 Flexible cable 뿐만 아니라
Semi-rigid cable, Semi-flexible cable 등 상용 RF Connector series와 함께 사용할 수 있습니다.

Total 10건, 1 페이지

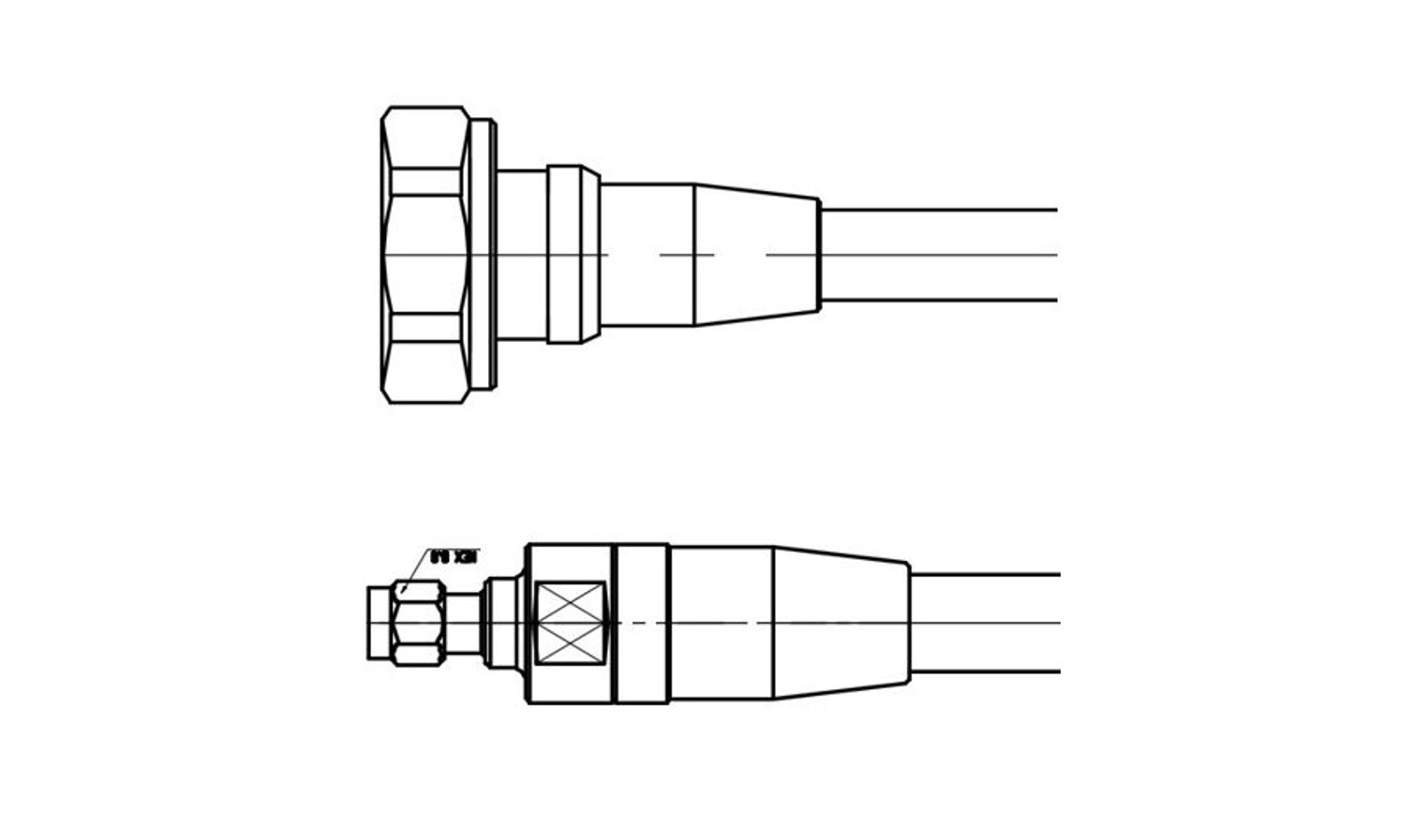

  • XSF38DMNM01.0M
    • P/N : XSF38DMNM01.0M
    • Frequency range : DC ~ 3GHz
    • VSWR : 1.25
    • Gender : 7-16 DIN Male to N Male
    • Patterns : Straight
    • Cable : 3/8inch Super Flexible
    Download Specifications

  • XSF38DMAM01.0M
    • P/N : XSF38DMAM01.0M
    • Frequency range : DC ~ 3GHz
    • VSWR : 1.25
    • Gender : 7-16 DIN Male to SMA Male
    • Patterns : Straight
    • Cable : 3/8inch Super Flexible
    Download Specifications

  • XSF38-DMDM01.0M
    • P/N : XSF38-DMDM01.0M
    • Frequency range : DC ~ 3GHz
    • VSWR : 1.25
    • Gender : 7-16 DIN Male
    • Patterns : Straight
    • Cable : 3/8inch Super Flexible
    Download Specifications

  • XAPLUS-NMNM-XX.XXM
    • P/N : XAPLUS-NMNM-XX.XXM
    • Frequency range : DC ~ 6GHz
    • VSWR : 1.20
    • Gender : N Male
    • Patterns : Straight
    • Cable : SF141
    Download Specifications

  • N1129-323
    • P/N : N1129-323
    • Frequency range : DC ~ 4GHz
    • VSWR : 1.20
    • Gender : N Male
    • Patterns : Straight
    • Cable : 1/2inch Flexible
    Download Specifications

  • ME18-AMAM-XX.XM
    • P/N : ME18-AMAM-XX.XM
    • Frequency range : DC ~ 18GHz
    • VSWR : 1.30
    • Gender : SMA Male
    • Patterns : Straight
    • Cable : RG402
    Download Specifications

  • ME12-NFNM-01.5M
    • P/N : ME12-NFNM-01.5M
    • Frequency range : DC ~ 6GHz
    • VSWR : 1.20
    • Gender : N Male to N Female
    • Patterns : Straight
    • Cable : RG141
    Download Specifications

  • ME06-NMNM-XX.XM
    • P/N : ME06-NMNM-XX.XM
    • Frequency range : DC ~ 6GHz
    • VSWR : 1.20
    • Gender : N Male
    • Patterns : Straight
    • Cable : RG141
    Download Specifications

  • E1010-323
    • P/N : E1010-323
    • Frequency range : DC ~ 4GHz
    • VSWR : 1.20
    • Gender : 4.3-10 Male
    • Patterns : Straight
    • Cable : 1/2inch Flexible
    Download Specifications

  • D1080-323
    • P/N : D1080-323
    • Frequency range : DC ~ 4GHz
    • VSWR : 1.20
    • Gender : 7-16 DIN Male
    • Patterns : Straight
    • Cable : 1/2inch Flexible
    Download Specifications
