RF Adaptor

Offers a full range of standard cable assemblies which are for use in a variety of industries. Cables are also available with broad/wide selection range of RF connectors which mounted to common type of flexible cables. as well as semi-rigid conformable cable. Customized assemblies are also available.

Total 48, Page 1

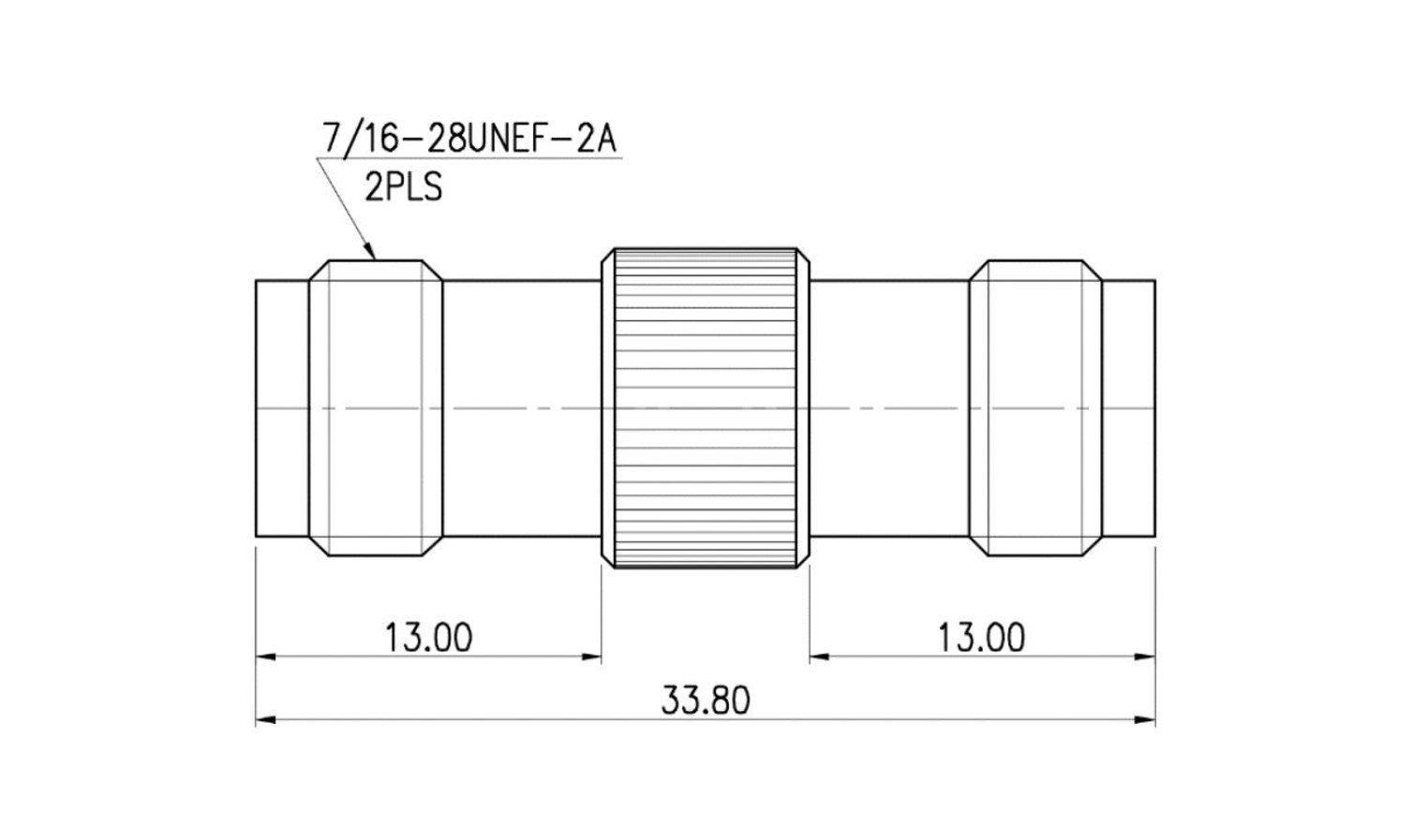

  • T8002-310
    • P/N : T8002-310
    • Frequency range : DC ~ 6GHz
    • VSWR : 1.20
    • Gender1 : TNC Female
    • Gender2 : TNC Female
    Download Specifications

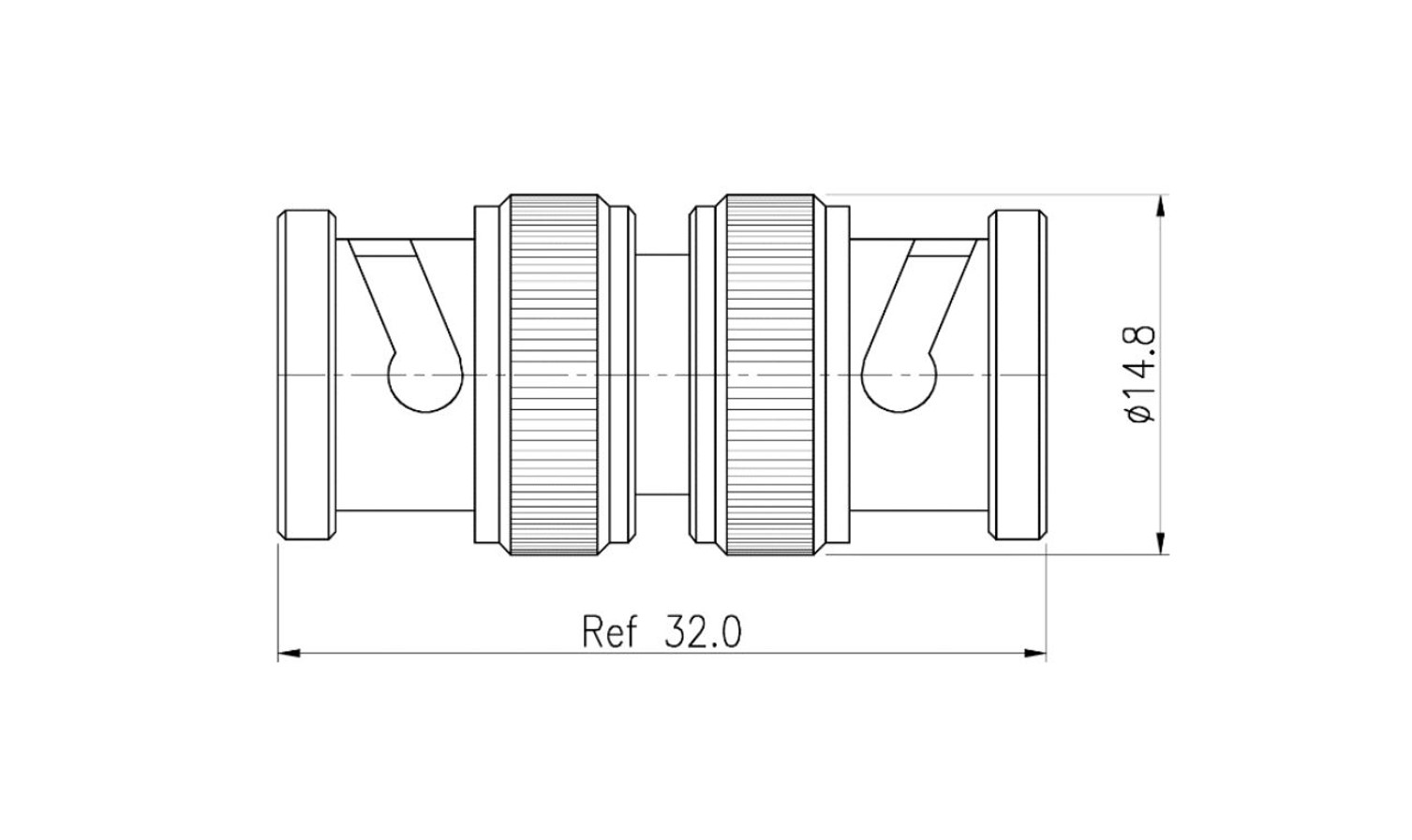

  • Q8001-414
    • P/N : Q8001-414
    • Frequency range : DC ~ 4GHz
    • VSWR : 1.20
    • Gender1 : BNC Male
    • Gender2 : BNC Male
    Download Specifications

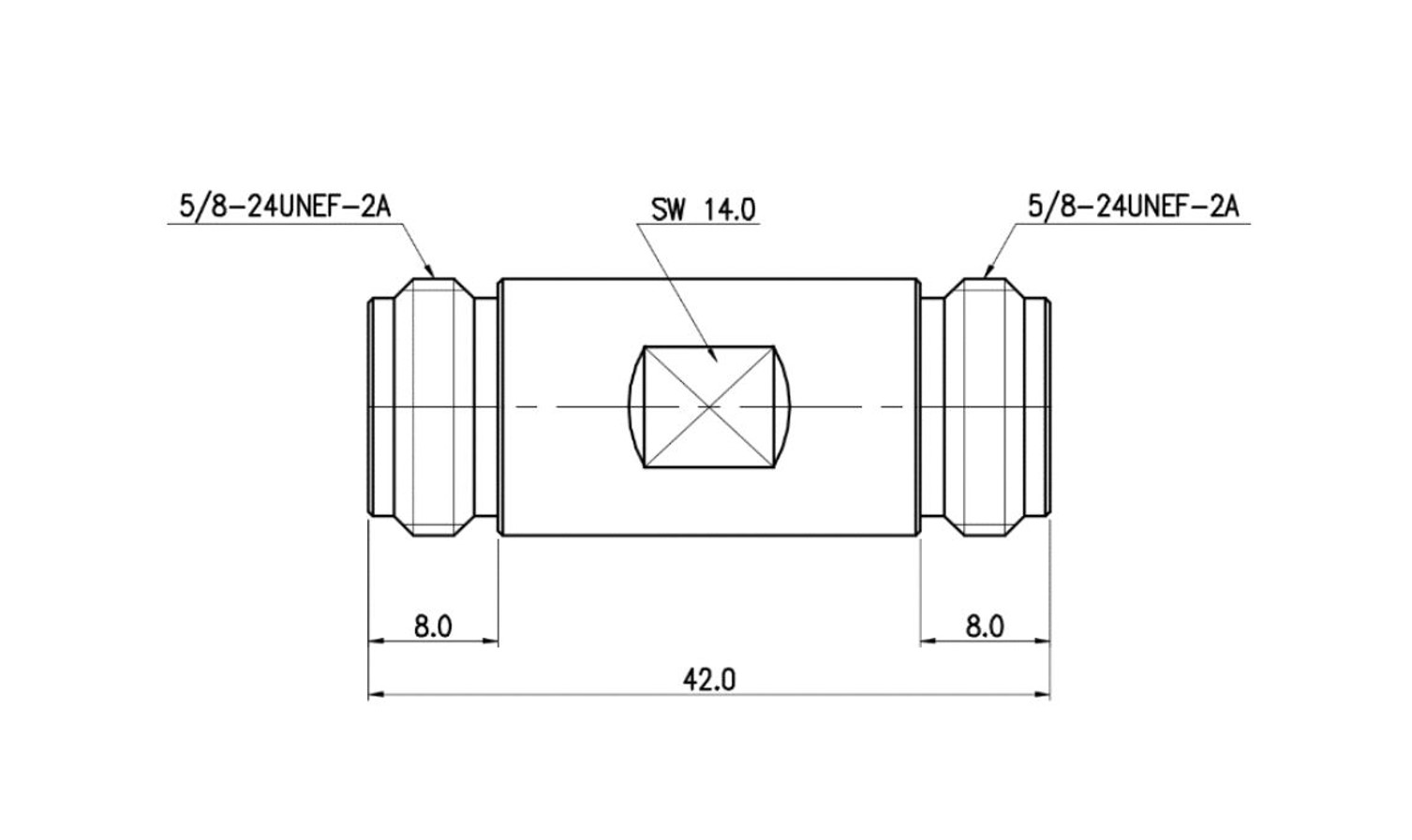

  • N8028-510
    • P/N : N8028-510
    • Frequency range : DC ~ 18GHz
    • VSWR : 1.20
    • Gender1 : N Female
    • Gender2 : N Female
    Download Specifications

  • M8001-110
    • P/N : M8001-110
    • Frequency range : DC ~ 6GHz
    • VSWR : 1.30
    • Gender1 : MCX Female
    • Gender2 : MCX Female
    Download Specifications

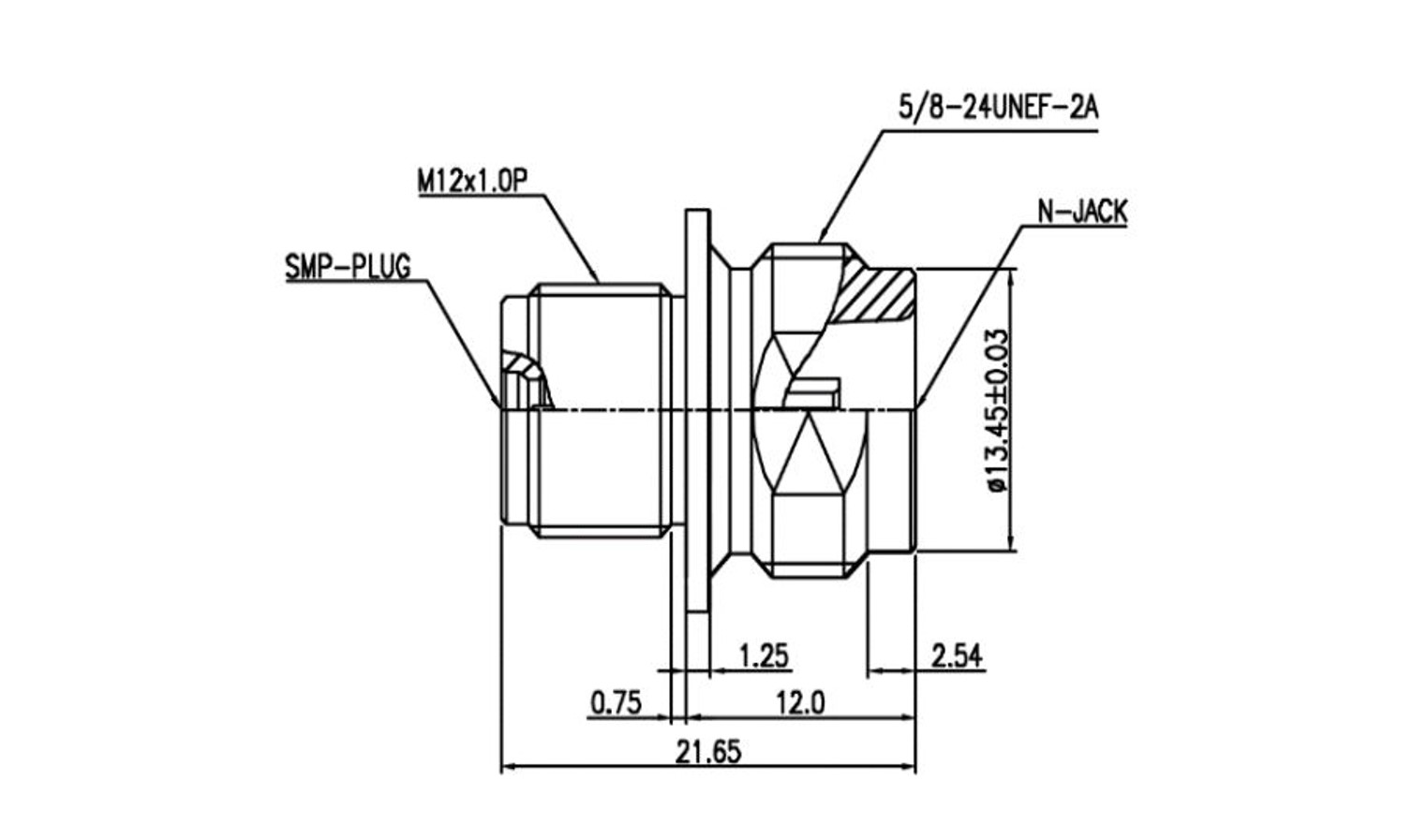

  • L9905-510
    • P/N : L9905-510
    • Frequency range : DC ~ 18GHz
    • VSWR : 1.35
    • Gender1 : SMP Male
    • Gender2 : N Female
    Download Specifications

  • L9901-510
    • P/N : L9901-510
    • Frequency range : DC ~ 18GHz
    • VSWR : 1.06
    • Gender1 : SMA Female
    • Gender2 : BMA Male
    Download Specifications

  • L6028-720
    • P/N : L6028-720
    • Frequency range : DC ~ 6GHz
    • VSWR : 1.05
    • Gender1 : 4.3-10 Female
    • Gender2 : SMA Male
    Download Specifications

  • L6024-727
    • P/N : L6024-727
    • Frequency range : DC ~ 6GHz
    • VSWR : 1.05
    • Gender1 : 4.3-10 Male
    • Gender2 : 4.3-10 Female
    Download Specifications

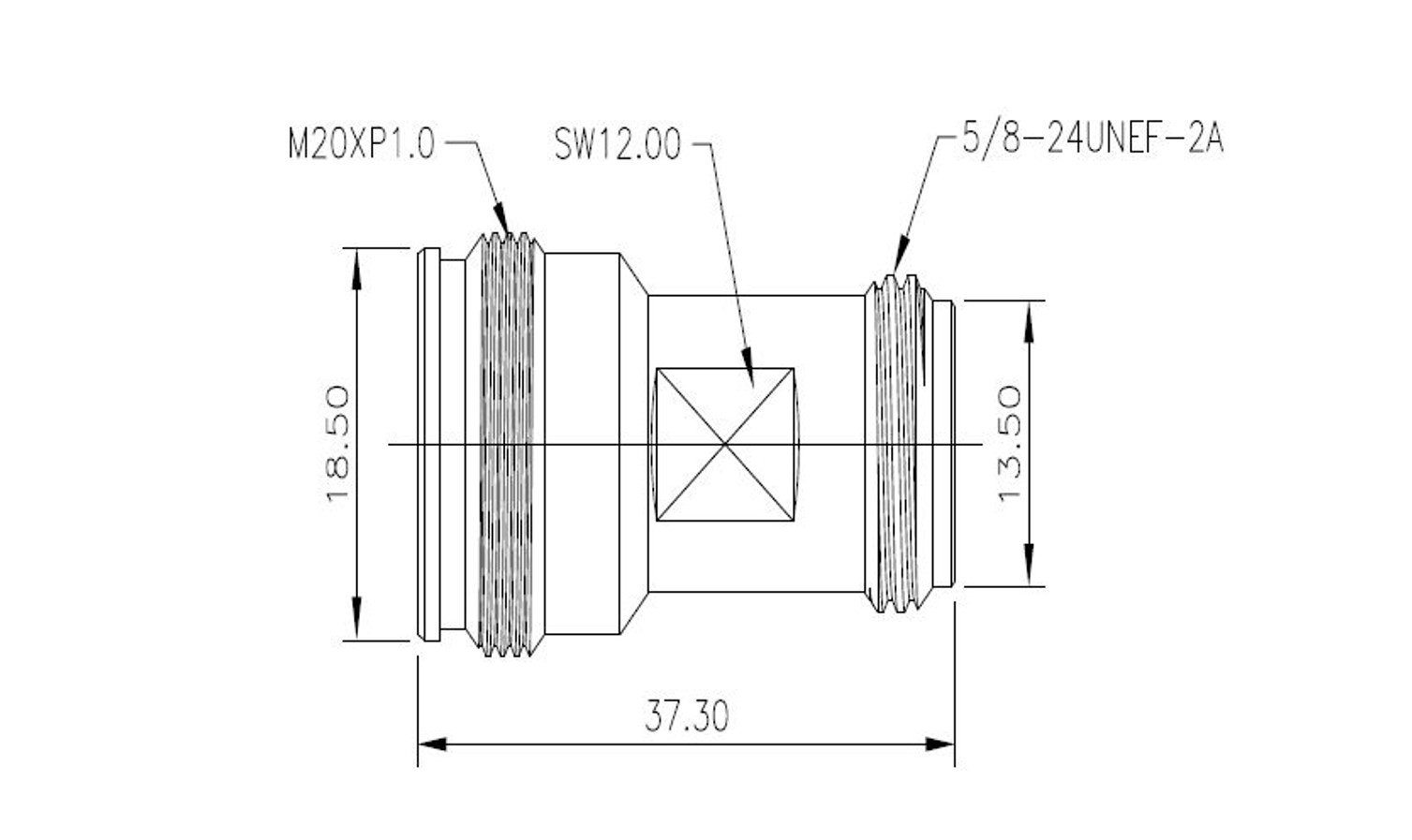

  • L6020-720
    • P/N : L6020-720
    • Frequency range : DC ~ 6GHz
    • VSWR : 1.05
    • Gender1 : 4.3-10 Female
    • Gender2 : 7-16 Female
    Download Specifications

  • L6010-720
    • P/N : L6010-720
    • Frequency range : DC ~ 6GHz
    • VSWR : 1.05
    • Gender1 : 4.3-10 Female
    • Gender2 : N Female
    Download Specifications

  • L3107-510
    • P/N : L3107-510
    • Frequency range : DC ~ 18GHz
    • VSWR : 1.20
    • Gender1 : SSMP Female
    • Gender2 : SMA Male
    Download Specifications

  • L3102-515
    • P/N : L3102-515
    • Frequency range : DC ~ 18GHz
    • VSWR : 1.20
    • Gender1 : SMP Female
    • Gender2 : SMA Male
    Download Specifications

  • L2103-110
    • P/N : L2103-110
    • Frequency range : DC ~ 4GHz
    • VSWR : 1.15
    • Gender1 : SMA Female
    • Gender2 : MCX Female
    Download Specifications

  • L1995-313
    • P/N : L1995-313
    • Frequency range : DC ~ 4GHz
    • VSWR : 1.25
    • Gender1 : 7-16 Male
    • Gender2 : BNC Female
    Download Specifications

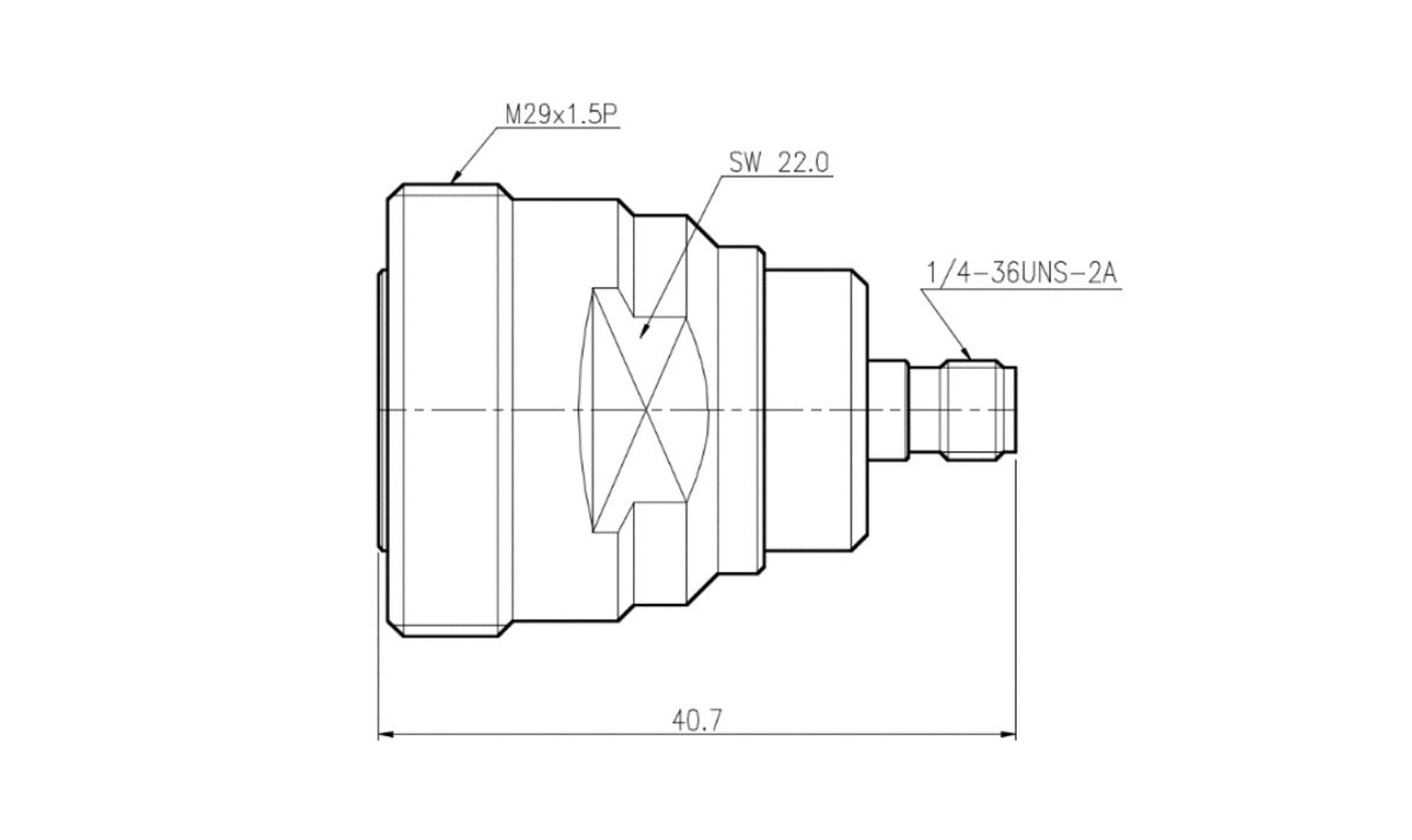

  • L1994-320
    • P/N : L1994-320
    • Frequency range : DC ~ 6GHz
    • VSWR : 1.25
    • Gender1 : 7-16 Female
    • Gender2 : SMA Female
    Download Specifications
