Datalink Antenna System

For the first time in Korea, we have secured core technology by developing TR Module for radar detection through the development of GaN MMIC HPA and are developing and producing various products optimized for S to Ka frequency band.

Total 6, Page 1

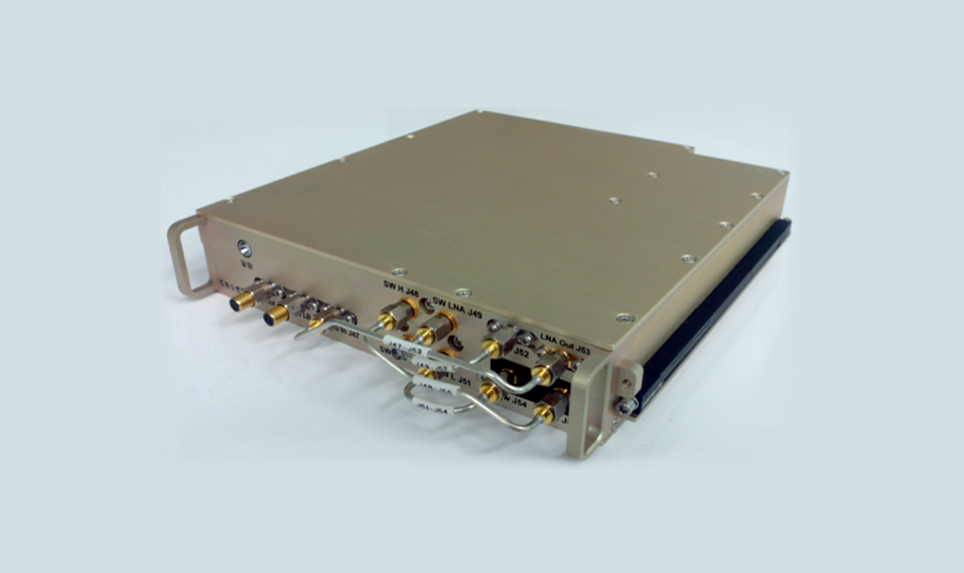

  • TICN TAU (Tactical Access Unit) RF Transceiver
    • S-Band High efficiency linearized Amplifier
    • High-speed switching
    • RF Integration and lightweight design
    • Embedded BIT (Built-In Test)

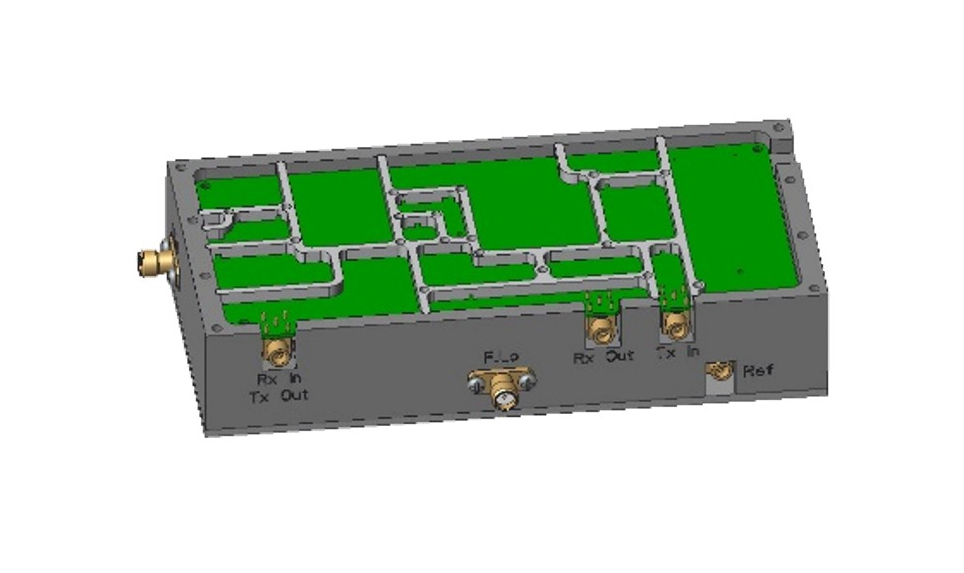

  • TAC (Tactical Air Command) ELINT (Electronic Intelligence) Data-Link System
    • High Efficiency Amplifier
    • High-speed AGC (Automatic Gain Control)
    • High-speed Frequency hopping
    • Embedded BIT (Built-In Test)

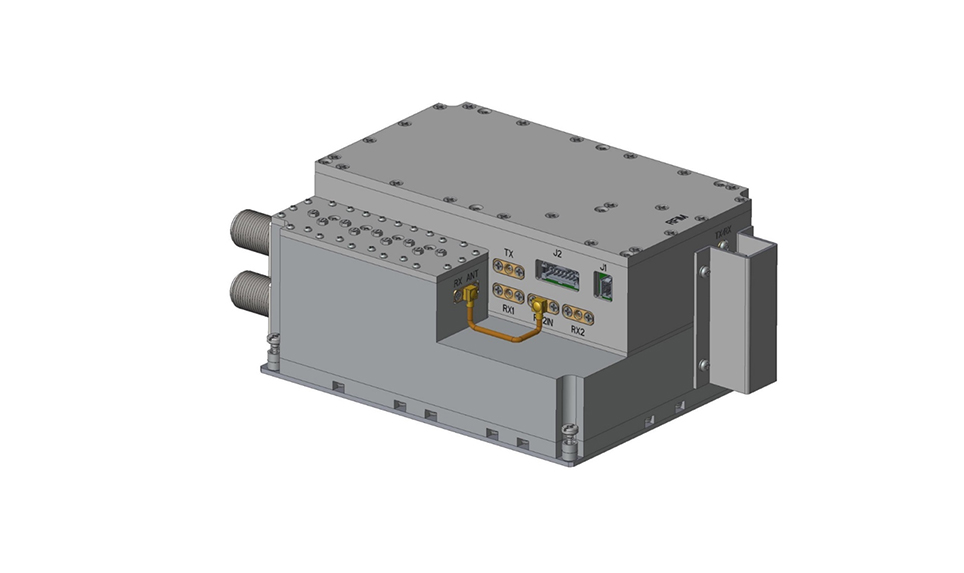

  • MPI-CDL X-band Transceiver
    • Support Multi Platform Image & Intelligence Common Data Link
    • Ku-Band Front-end LNA Design
    • Duplexing & 2X2 Transfer Coaxial Switching

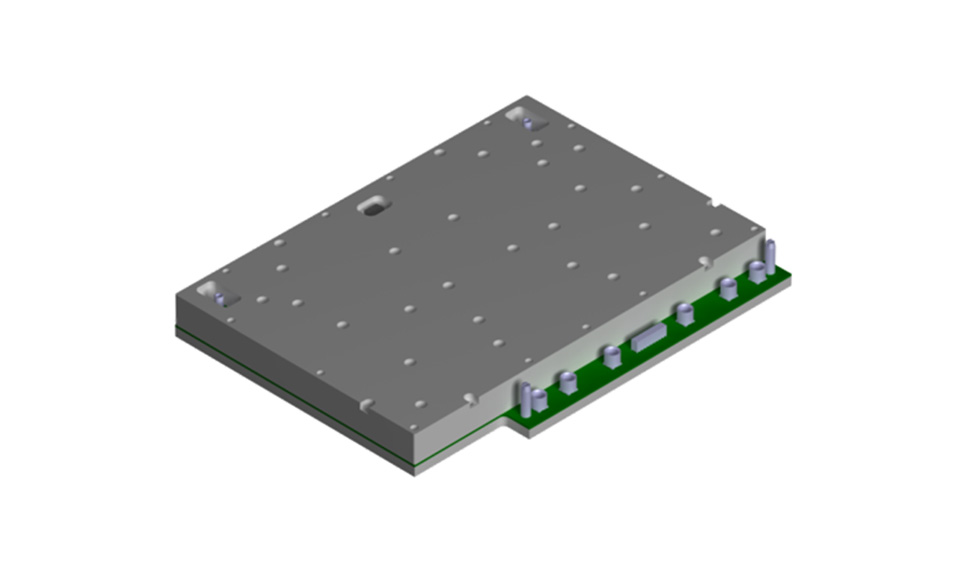

  • Cognitive Radio Up-down Converter
    • CR (Cognitive Radio) based V/UHF Wideband up-down converter
    • Support High SFDR (Spurious Free Dynamic Range)
    • DDS+PLL Hybrid Type
    • Compact, lightweight, High speed AGC

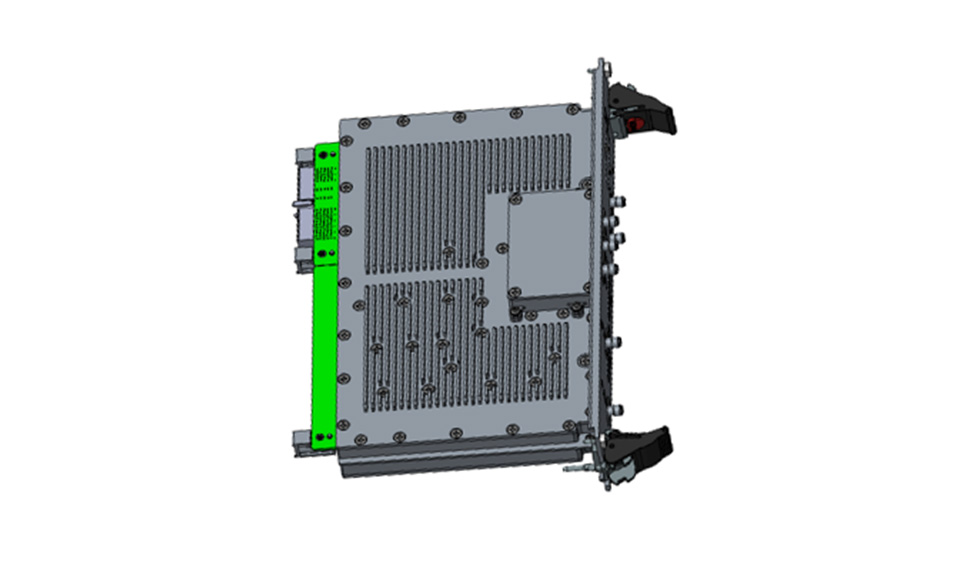

  • DEPS small BTS Amplifier
    • Amplifier for small transportable BTS supporting TAU & MSAP
    • High efficiency-high power SSPA
    • Tunable filter
    • Compact, lightweight and low power consumption

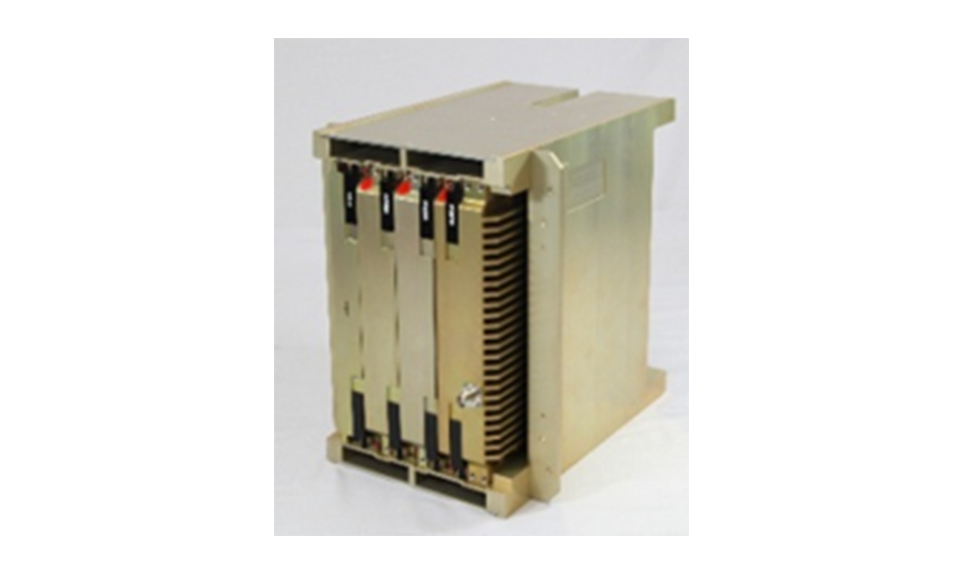

  • TMMR Up-down converter
    • SDR (Software Defined Radio) based V/UHF wideband up-down converter
    • Power control for transceiver
    • Designed for UHF wideband
    • High speed AGC
    • 90dB High Dynamic Range
    • Compact, lightweight and low power compsumption
