Automotive Antennas

Ace Antenna's RF technology leads the era of Autonomous driving and Connected cars.

Total 10, Page 1

  • Wireless Charging WiFi Module
    • To be used for Wireless power transmit unit of EV and Charging station
    • To support charging process management, information transmit, charging fee charge
    • Frequency and spec : 802.11 b/g/n (Bandwidth 20MHz)

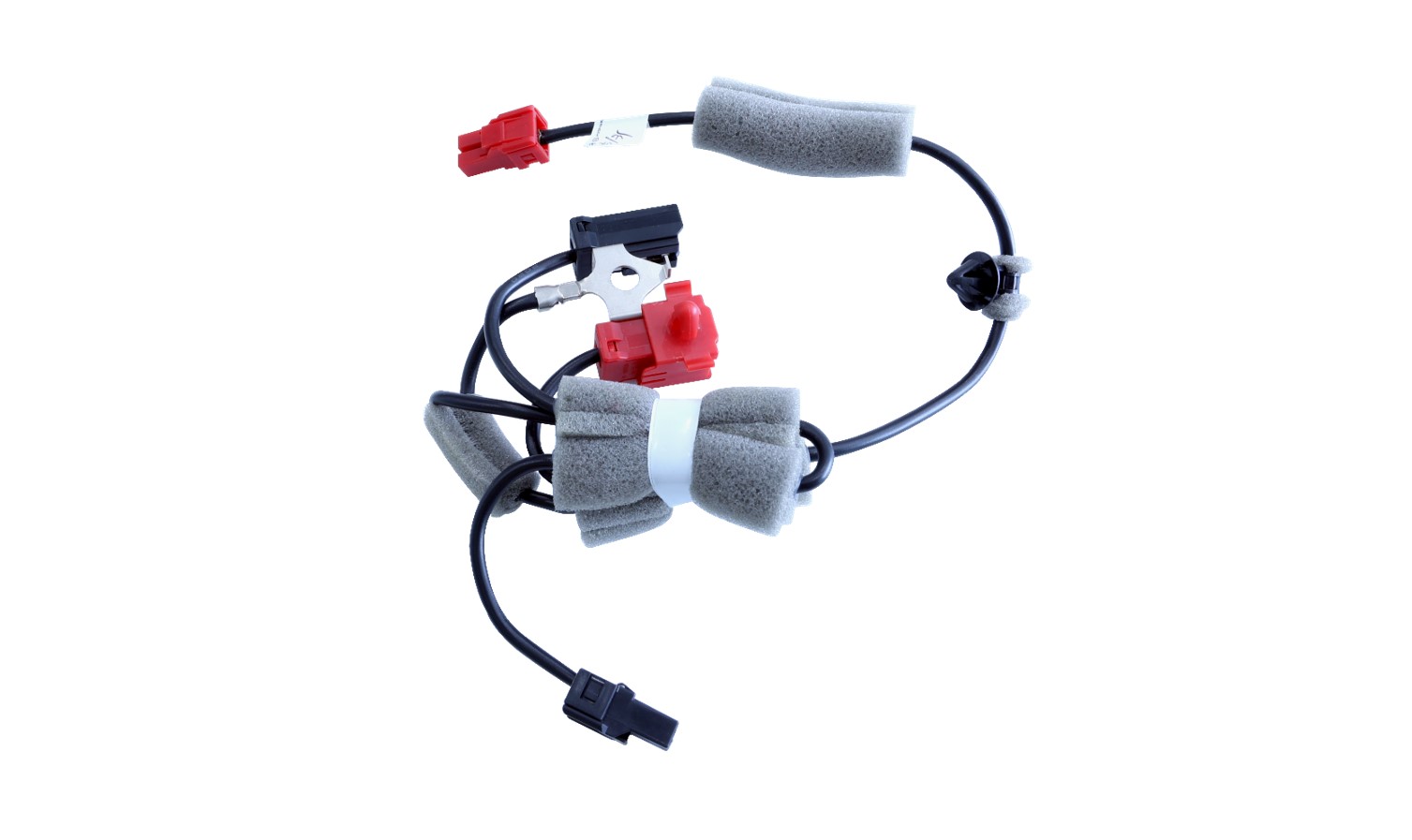

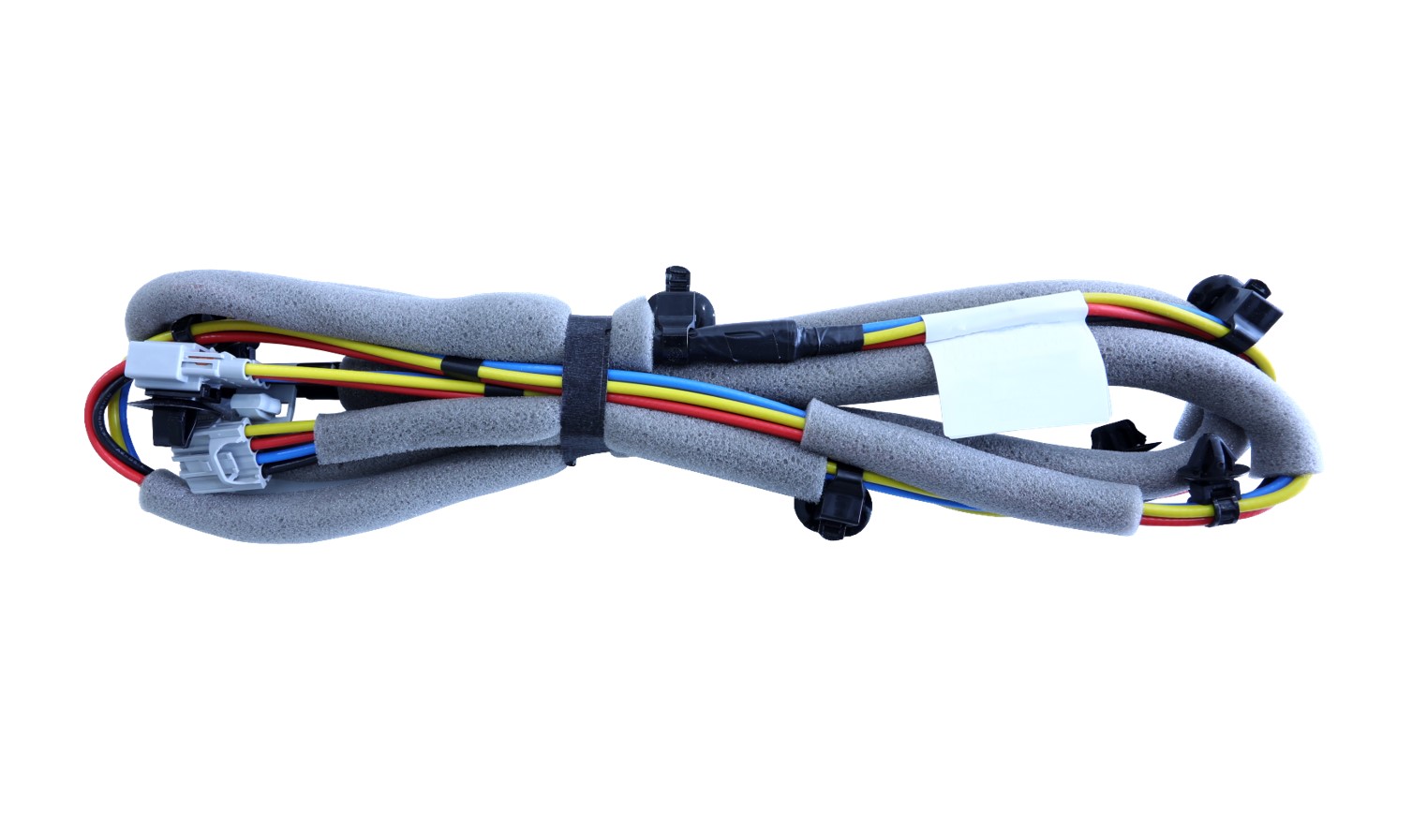

  • Feeder Cable
    • Feeder cable assembly (RF coaxial cable with various connectors)
    • To transmit various RF signal(Audio/Navigation) to head unit
    • Service bandwith : AM/FM / FM2 / DMB / DAB / SXM / GNSS / LTE1 / LTE2 / eCall1 / eCall2
    • Customer : Hyundai, Kia

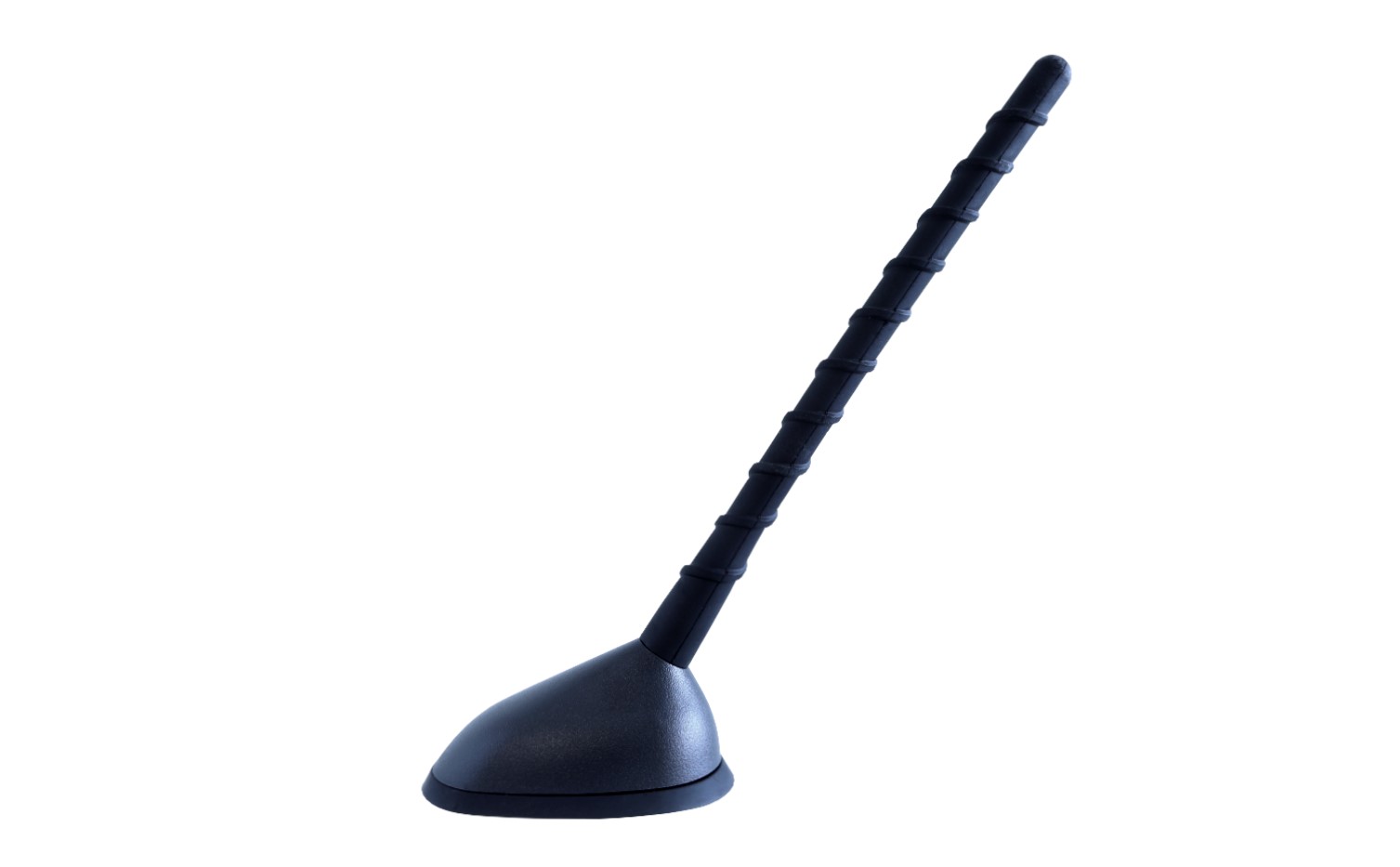

  • Radio Pole Antenna
    • External mounting antenna in the rear side of the roof
    • Small helical antenna with 190mm pole, supporting radio broadcasting only

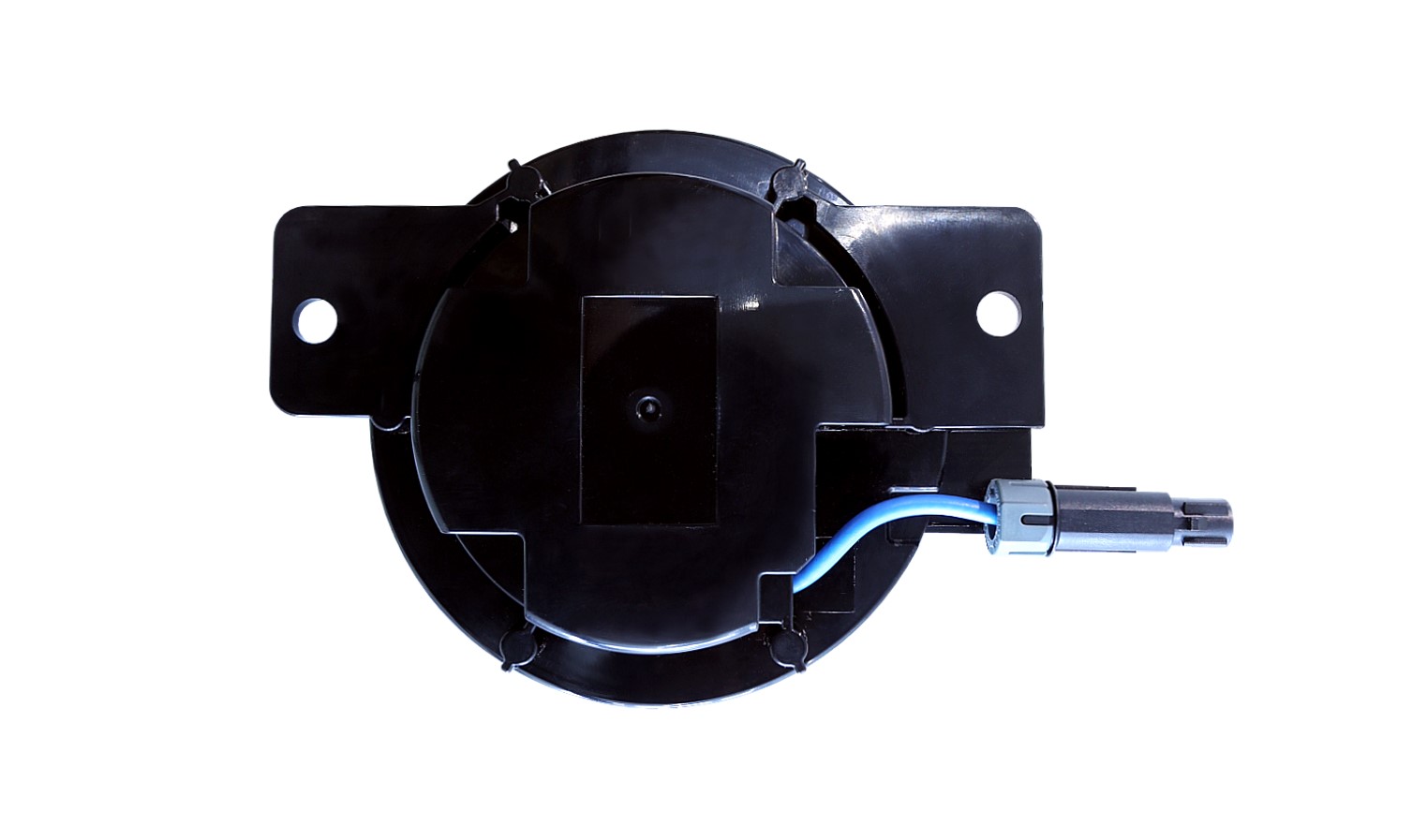

  • INS Antenna
    • Inertial Navigation System Antenna
    • Mounted on rear spoiler inside, receiving a satellite signal for the precision position service

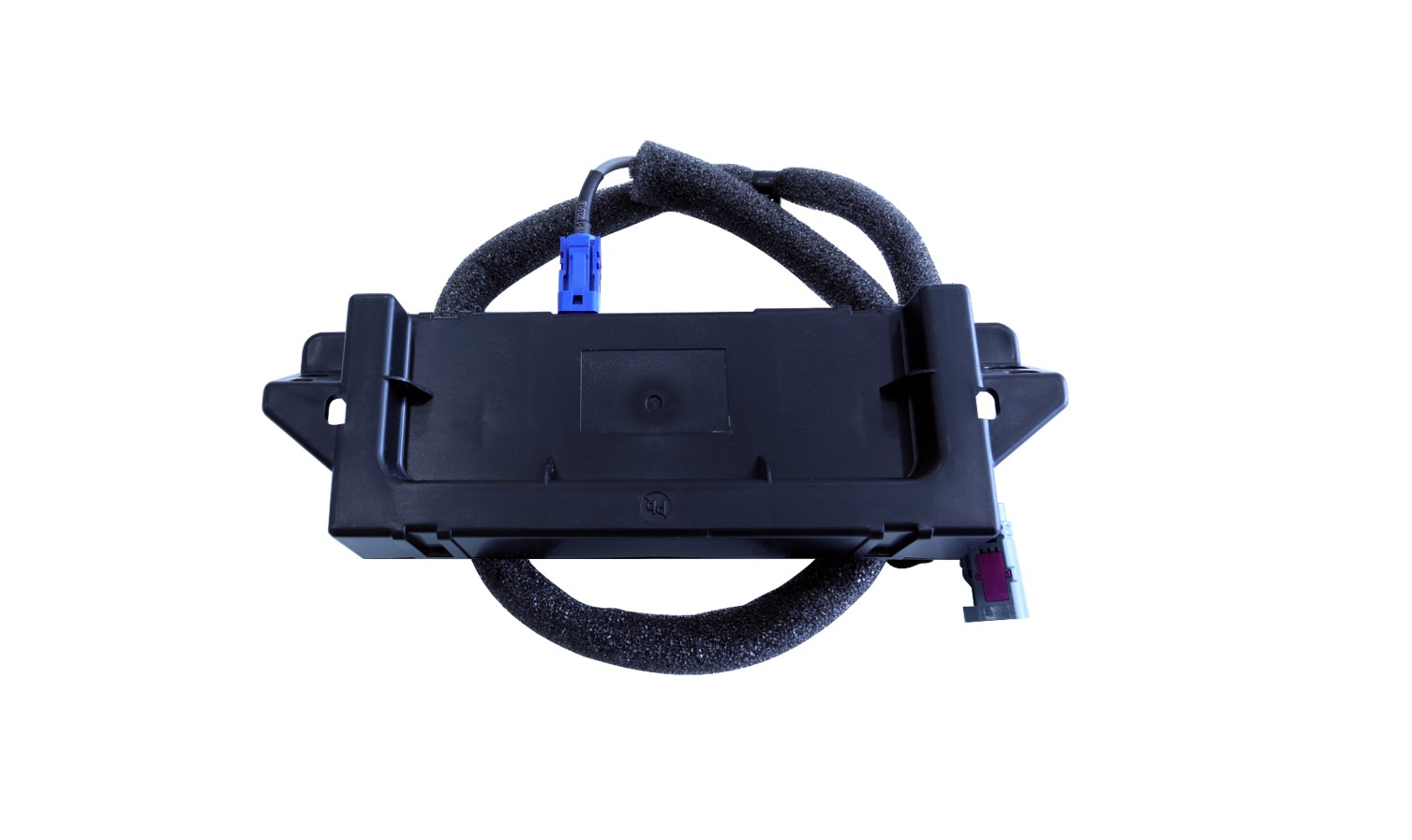

  • IP Antenna
    • Mounted on inside I/P
    • To cover multinational/regional mobile telecommunication frequency
    • Service bandwith : LTE / e-Call / 5G_sub6

  • Crash Pad Antenna
    • Mounted on inside I/P
    • To cover multinational/regional mobile telecommunication frequency
    • Service bandwith : LTE or CCs / Wi-fi / e-Call
    • Customer : Hyundal, Kia

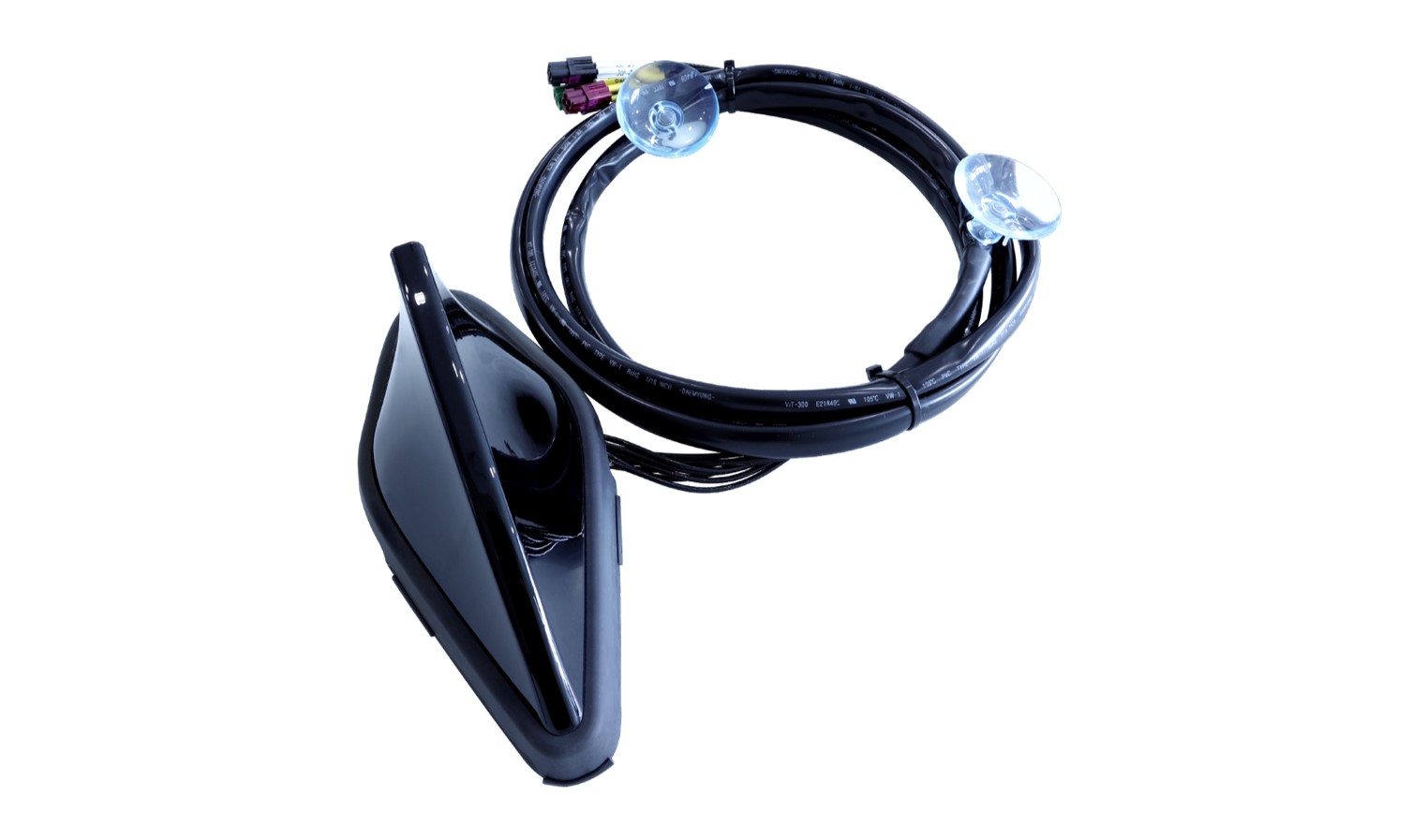

  • 5G Shark Fin Antenna
    • External type combined antenna mounted on roof rear
    • To support normal broadcasting, specially supporting for ADAS/AD wireless communication
    • Additional service bandwith : 5G , WAVE, Cellular V2X MIMO / Multi_Band GNSS

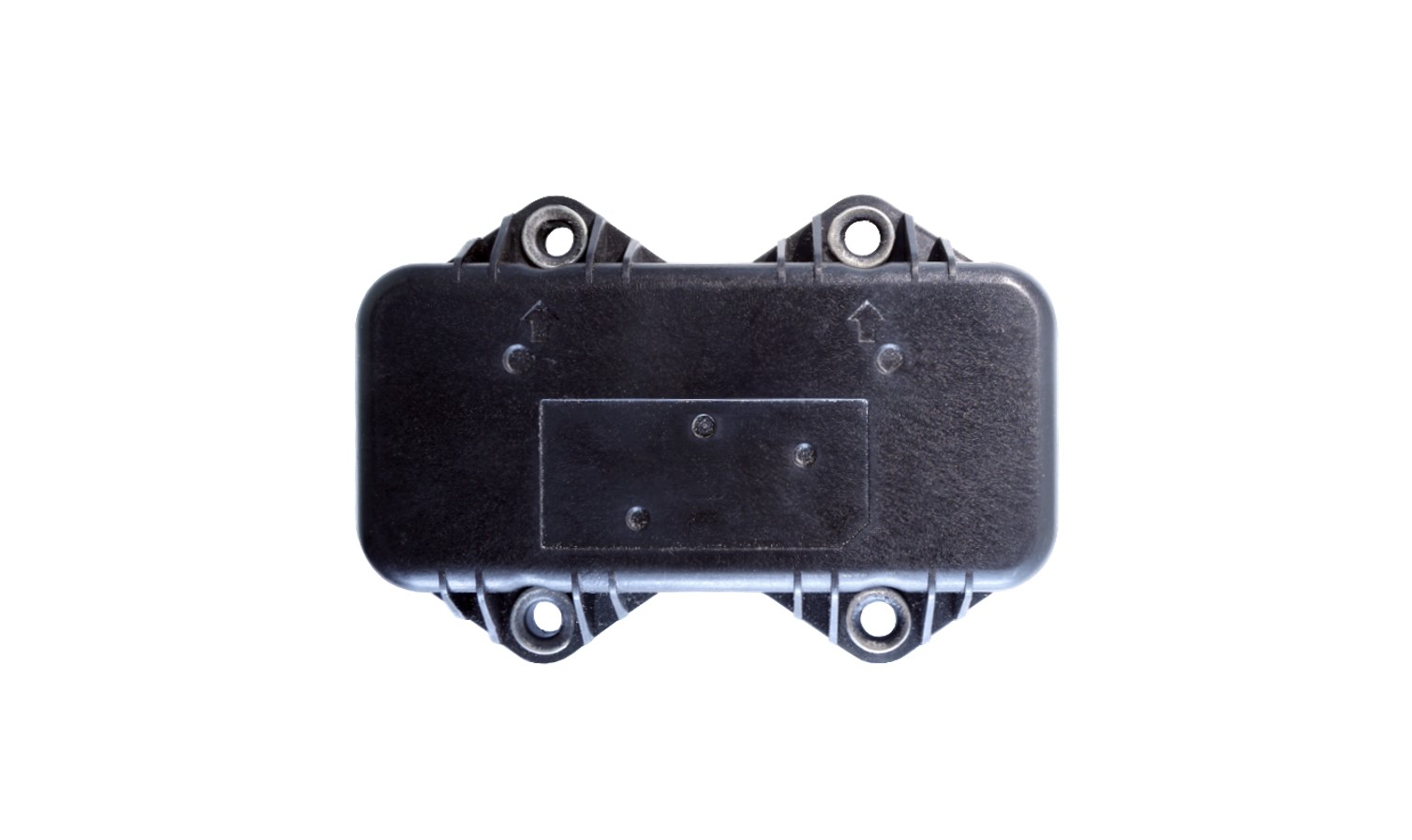

  • Glass Antenna Amplifer
    • Low noise amplifer mounted on interior side(normally c-pillar)
    • To amplify the signal from the rear glass pattern antenna
    • Additional composition : Signal and noise filers (GSC, C&C / HSC, LSC)
    • Service bandwith : AM / FM / DMB / DAB
    • Customer : hyundai, Kia

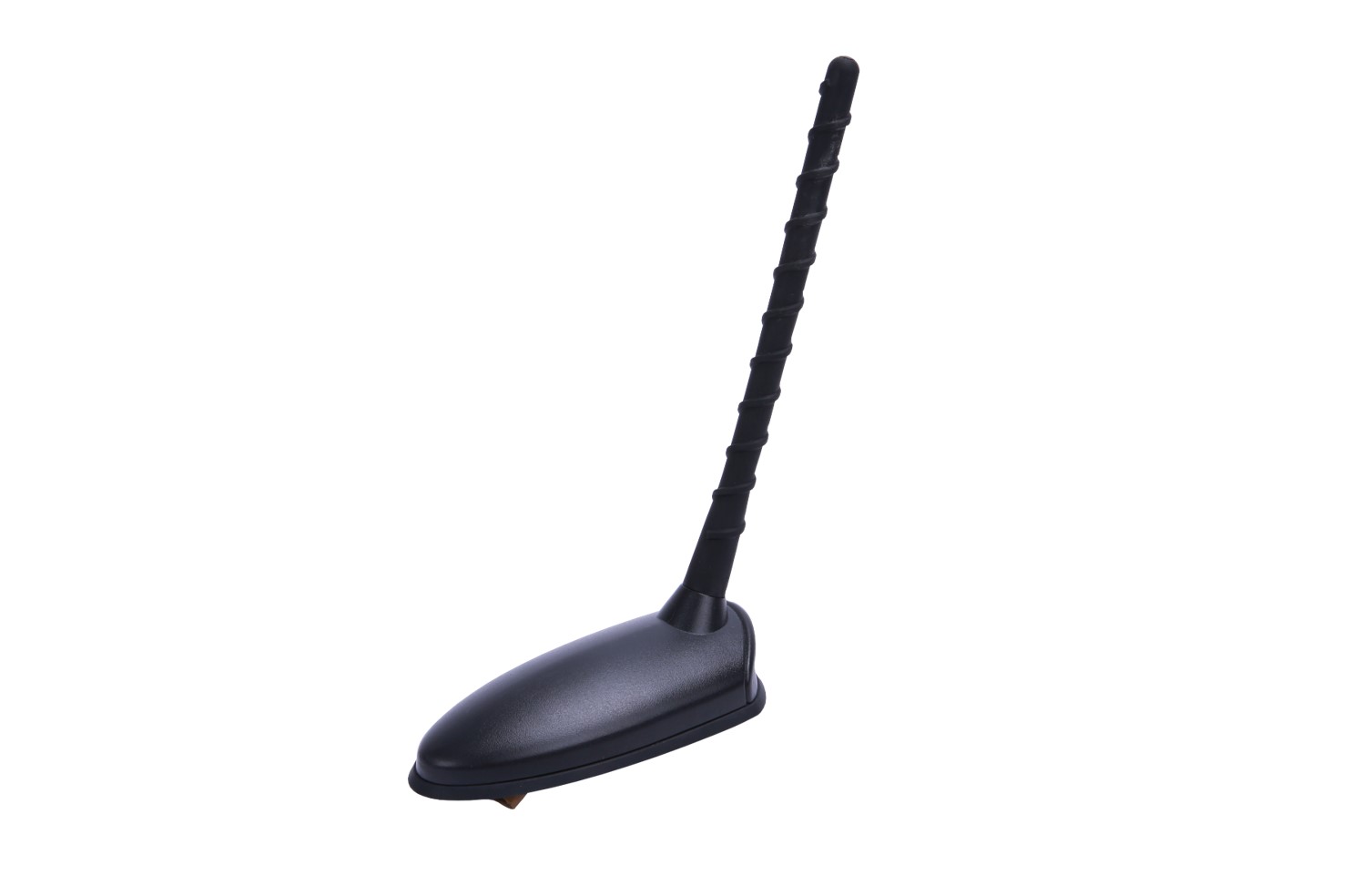

  • Micro Pole Antenna
    • External mounting antenna in the rear side of the roof
    • Combined helical antenna with 190mm length pole, covering regional broadcasting and telecomunication frequencey
    • Service bandwith : Broadcasting (AM, FM, DMB, DAB, SDARS), Satellite signal (GPS, GNSS), Telecomunication (LTE / e-Call)
    • Customer : Hyundai, Kia

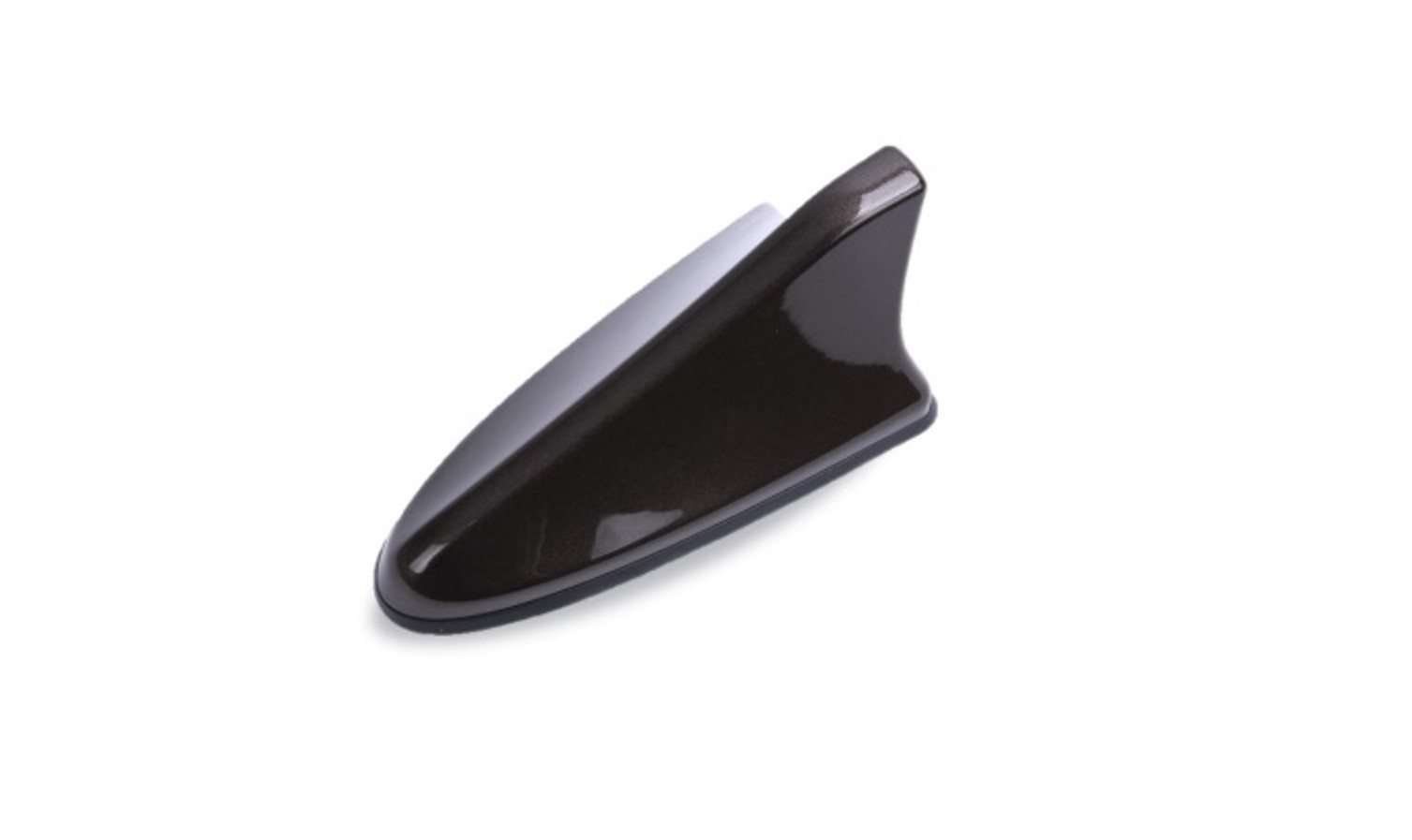

  • Shark Fin Antenna
    • External mounting antenna in the rear side of the roof
    • Sharkfin designed with supporting multinational broadcasting and telecommunication
    • Service bandwidth : Boadcasting (AM, FM, DMB, DAB, SXM), Satellite navigation (GPS, GNSS), Mobile communication (LTE / e-Call)
    • Customer : Hyundal, Kia, Vinfast
